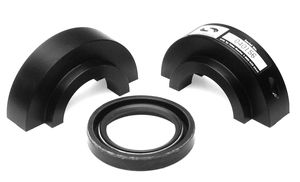

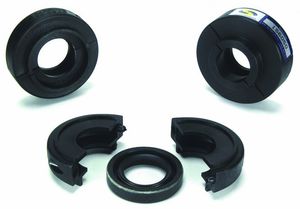

The Tides Marine Spare Seal Carrier Kit is used in conjunction with the Tides Marine SureSeal dripless propeller shaft system.
It provides a convenient way of storing a replacement lip seal on the propeller shaft during installation of the SureSeal.
This allows the change of a damaged or worn lip seal without uncoupling the shaft from the transmission.
If necessary the lip seal can be replaced with the craft afloat.
|
|
Tides Marine SureSeal is the market leader in dripless propeller shaft sealing systems. SureSeal has become an industry standard fit on many production-built power boats, yachts and commercial craft around the world.

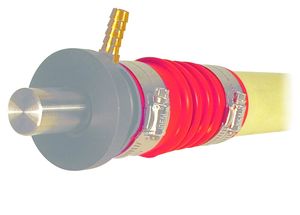

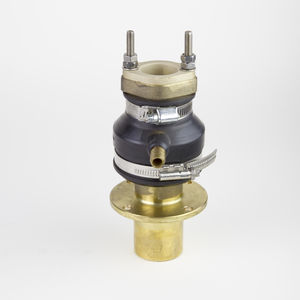

The Tides Marine SureSeal system is a water tight, self aligning shaft seal housing connected to the stern tube by a flexible silicon hose.
Manufactured for imperial and metric shaft diameters of 1.375"/35mm to 8"/200mm with hose options to suit a wide range of stern tube diameters.
Tides Marine SureSeal has Ameican Bureau of Shipping and Lloyds Register Type Approval certification.
Suitable for new build and retrofit applications in all types of shaft drive vessels.
|
|
The Tides Marine seriesOne shaft seal is a water lubricated dripless shaft seal system designed for use on smaller vessels with stainless steel propeller shafts.
Suitable for imperial and metric shaft diameters between 0.75"/22mm to 1.25"/30mm with a wide range of stern tube attachment hoses available.
Tides Marine seriesOne shaft seals are suitable for yachts, work boats and high speed ski boats due to the wide operating range of the product.
|
|
Seals have been developed to operate on propeller shafts of small, medium and large size boats where a high level of reliability is required.
The special design allows large axial displacement and the use of suitable material guarantees as well as high resistance to corrosion and high mechanical resistance to withstand stresses produced by vibrations.
The installation of mechanical seals in this particular field has solved problems such as corrosion during long periods of inactivity and shaft damage caused by traditional stuffing boxes. Power absorption is considerably reduced as well.
|
|
Seals have been developed to operate on propeller shafts of small, medium and large size boats where a high level of reliability is required.
The special design allows large axial displacement and the use of suitable material guarantees as well as high resistance to corrosion and high mechanical resistance to withstand stresses produced by vibrations.
The installation of mechanical seals in this particular field has solved problems such as corrosion during long periods of inactivity and shaft damage caused by traditional stuffing boxes. Power absorption is considerably reduced as well.
|
|
|

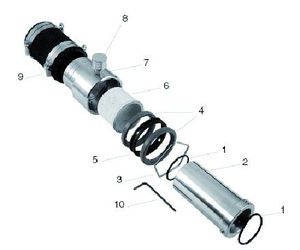

The use of face seals allows us to resolve the typical problems in which, over time, the installation of the traditional stuffing box incurs, that is wear on the shaft, wet bilge and continuous tightening of the packing, etc. Schematically, the face seal is made up of two parts: one that is stationary and one that rotates. The stationary part is generally fixed to the packing box; the rotating part is fixed to the shaft and turns with it. Thus there is no wear on the shaft: in fact the true seal is found perpendicular to the shaft in two micro lapped surfaces that rub against one another. The elastic bellows or springs recuperate eventual surface wear, thus the constant tightening of the packing is not required. Moreover, the presence of bellows and/or springs, in addition to recuperating wear, serves to compensate eventual misalignment, absorbing vibrations or sudden shifts of the shaft.
|
|
The Tides Marine SmartSeal temperature monitoring system has been developed for the Tides Marine SureSeal dripless propeller shaft seal.
Designed to monitor the temperature of the seal head and then provide an audible and visual alarm if an excessive rise in operating temperature occurs.
The system is suitable for 12v DC or 24v DC and can be retro-fitted to existing SureSeal units already installed.
|
|
| ... products without information |
| |

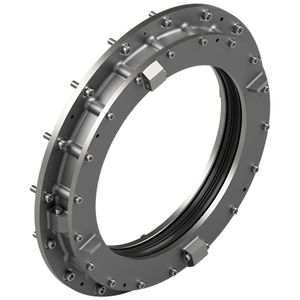

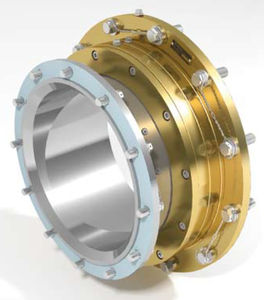

The Simplan seal is a mechanical seal for water-lubricated sterntubes for river vessels and seagoing vessels.
Simplan seals meet the highest standards set by the "Central Commission for Rhine Shipping" (European Waterways).
They are certified by Germanischer Lloyd, the American Bureau of Shipping, by Lloyds Register and by ClassNK (Nippon Kaiji Kyokai).
|
|
|
|
