FFH Serie
Freefall launching system for freefall lifeboat from 55-75 kn complete with electric/hydraulic recovering device in a welded or flanged box girder execution.
|
|
FLR Serie
Launching ramp for freefall lifeboats from 50-65 kn in a welded or flanged box girder execution.
|
|
|
|
|
|
|

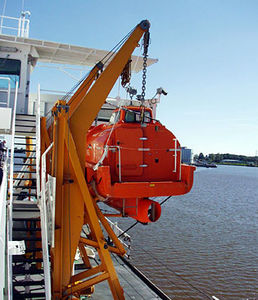

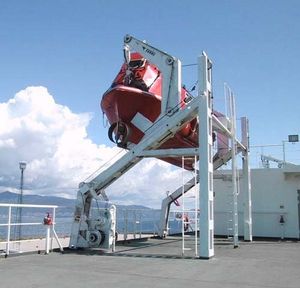

The NED-DECK MARINE free-fall lifeboat davits of the FFH series have been designed for long time operation under adverse and extreme circumstances in a highly corrosive marine environment.
The FFH davit is a deck to wall mounted davit, placed at the stern of the ship, and consists of a launch ramp, davit arm (A-frame), winch and hydraulic unit.
The system is suitable for safe and efficient launching of a fully manned free-fall lifeboat against unfavourable conditions of trim of up to 10 degrees and a list of up to 20 degrees either way.
The launch ramp has been provided with sliding pads, made of high density polyethylene, taking care after a smooth acceleration of the boat.
In those cases where free-fall launch appears to be unpractical or unsafe, the system has also been provided with a secondary means to launch the lifeboat by falls against unfavourable conditions of trim of up to 2 degrees and a list of up to 5 degrees either way.
Recovery of the lifeboat with its launching crew (4 persons) can be realised by using the hydraulic driven winch. For easy positioning of the lifeboat back onto its launch ramp, the davit arm and launch ramp have been provided with boat guidings to prevent damage to the lifeboat.
|
|
The Noreq NPD series davits are specifically designed for safe and efficient launch and retrieval of lifeboats. It is intended for long term, reliable operation in harsh and hazardous marine and offshore environments.
The davit system is designed in accordance with latest IMO/SOLAS requirements, LSA Code and European Council Directive96/98 on Marine Equipment (MED). It’s carefully considered and epoch making design, gives advantages when it comes to maintenance and service, installation and deck preparations, and also for heating in arctic climate. All equipment is integrated inside the davit structure.
Launching of the lifeboat is performed either from inside the boat or from remote control unit supplied as standard. Recovery of the lifeboat is performed by the electric driven winch.
|
|
FPD Serie
Pivoting Type of davits for lifeboats from 55-170 kn SWL.
Execution in a welded girder construction with electric winch suitable for lifeboat and rescueboat version.
|
|
|
The group name of Fhs.-type free-fall lifeboat handling cranes represents the executions of slewing cranes for lifeboat handling and combined executions with additional rescue boat/ raft and/or stores handling functions; with hydraulically driven slewing features. These and other systems are available upon request. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The group name of Fhs.-type free-fall lifeboat handling cranes represents the executions of slewing cranes for lifeboat handling and combined executions with additional rescue boat/ raft and/or stores handling functions; with hydraulically driven slewing features. These and other systems are available upon request. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The Norsafe HD davit system is especially designed for safe and efficient launching and retrieval of Norsafe free fall lifeboat. The davit system is designed for long time operation in a tough and corrosive marine/offshore environment. The davit system is designed to fulfil all requirements as given in SOLAS 1983/96/IMO requirements.
|
|
The NED-DECK MARINE manual slewing davits have been designed for long time operation under adverse and extreme conditions in a highly corrosive marine environment.
The manual slewing davits of the SCM-R series are so-called %u201Cplug-in and play units%u201D all guaranteeing easy installation on board.
The SCM-R davit is a freestanding deck mounted davit consisting of a davit arm, column and winch.
The system is suitable for safe and efficient launching and recovery of a fully manned rescue boat against unfavourable conditions of trim of up to 10 degrees and a list of up to 20 degrees either way.
|
|
The Noreq NRD series davits are specifically designed for safe and efficient launch and retrieval of lifeboat. It is intended for long term, reliable operation in harsh and hazardous marine and offshore environments.
The davit system is designed in accordance with latest IMO/SOLAS requirements, LSA Code and European Council Directive96/98 on Marine Equipment (MED). It’s carefully considered and epoch making design, gives advantages when it comes to maintenance and service, installation and deck preparations, and also for heating in arctic climate. All equipment is integrated inside the davit structure.
Launching of the lifeboat/rescue boat is performed either from inside the boat or from remote control unit supplied as standard. Recovery of the lifeboat is performed by an electric/hydraulic driven winch.
|
|
|
NMF’s range of products includes a variety of service cranes for every conceivable application. For instance, they include the BPK davit, designed as a combined crane and boat control system, and the KD Kombi-Davit, designed as a combined crane and rescue system.
|
|
|
The group name of Gsp.FPh.-type davits represents the very low-build type of davit systems for lifeboats; with turning out on hydraulic power. The Gsp.FPh. systems are available upon request only. The systems are very low-build and combine a low weight with an extreme low centre of gravity. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The group name of Gsp.-type davits represents the most common execution of davit systems for lifeboats; with turning out on gravity. The Gsp. systems and other systems are available upon request. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
Rescue boat davits
TTS Marine Cranes is a supplier of single point davits for life saving equipment according to SOLAS (LSA). TTS has choosen DNV as a Notified Body and the standard davits are supplied with EC Type-Examination Certificate. TTS is specialized in creating solutions to meet your requirements and can also offer davit and boat as a complete package.
|
|
|
FERRI salvage davits are designed and manufactured in accordance with the SOLAS regulations and the Community Directive “Maritime Equipment Directive” 2002/75/EC.Provisions and accommodation ladders davits are in accordance with ISO and DIN standards.
|
|
|
The group name of Lms.-type liferaft cranes represents the simplest execution of slewing cranes for liferafts available: with manually driven slewing features. These and other system are available upon request. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
|
The group name of Lms.-type liferaft cranes represents the simplest execution of slewing cranes for liferafts available: with manually driven slewing features. These and other system are available upon request. The systems are in full accordance with the present SOLAS-rules and are MED-certified.
|
|
| ... products without information |
| |
Duarry liferafts approved according to SOLAS 74 chapter III and amendments and according to the European Directive for Marine Equipment. Created With the latest innovations in design combined with more than 40 years of wherever your ship operates.
The Duarry quality assurance system is approved by Bureau Veritas according to ISO 9001
|
|
Duarry liferafts approved according to SOLAS 74 chapter III and amendments and according to the European Directive for Marine Equipment. Created With the latest innovations in design combined with more than 40 years of wherever your ship operates.
The Duarry quality assurance system is approved by Bureau Veritas according to ISO 9001
|
|
VIKING davit-launched liferafts can be used for evacuation on their own, or in combination with mass evacuation systems (MES)
Davit-launched liferafts are ideal supplements to slide and chute systems, providing safe evacuation for those unable to descend chutes or slides due to injury, disability or size.
They can be launched from almost any type of vessel, regardless of deck height or hull shape.
Standard davit-launched liferafts are available in sizes:
12, 16, 20, 25 and 35
|
|
VIKING davit-launched liferafts can be used for evacuation on their own, or in combination with mass evacuation systems (MES)
Davit-launched liferafts are ideal supplements to slide and chute systems, providing safe evacuation for those unable to descend chutes or slides due to injury, disability or size.
They can be launched from almost any type of vessel, regardless of deck height or hull shape.
Self-righting davit-launched liferafts are available in sizes:
25, 37 and 39
|
|
|
|
