launching trolleys (not allowed to drive on the road) with a central axle of V-rollers for the range of CM, beach trolley for the range of "CO, CV", and low-loading trolleys equipped with 4 wheels and 4 hump blocks for the BD used for the storage of the boats.
|
|
Launching trolley DER1
Dinghies Europe - Laser - Equipe - 420 ...
Chassis anodic aluminium
Bunk of protection stem
2 low pressure wheels
Adjustable and dismountable drawbar in 2 parts
Towing hitch & jockey big wheel (option)
Strap yellow adjustable
Support in « V » adjustable on drawbar
Overall length : 3m30
Length bearing hull : 2m90
Total width : 1m70
Width bearing hull : 1m50
Dismounted length : 1m50
Weight : 12kg
Launching trolley DER1L
Dinghies Europe - Laser - Equipe - 420 ...
Chassis anodic aluminium
Bunk of protection stem
2 low pressure big wheels
Adjustable and dismountable drawbar in 2 parts
Towing hitch & jockey big wheel (option)
Strap yellow adjustable
Support in « V » adjustable on drawbar
Overall length : 3m30
Length bearing hull : 2m90
Total width : 1m80
Width bearing hull : 1m50
Dismounted length : 1m50
Weight : 16kg
|
|
Launching trolley OPT1
Dinghies Optimist - Tender...
Chassis anodic aluminium
Bunks of yellow protection (good visibility)
2 low pressure wheels
Dismountable drawbar
Overall length : 1m95
Length bearing hull : 1m53
Total width : 1m55
Width bearing hull : 1m20
Dismounted length : 1m40
Weight : 8kg
Launching trolley OPT1L
Dinghies Optimist - Tender...
Chassis anodic aluminium
Bunks of yellow protection (good visibility)
2 low pressure big wheels
Dismountable drawbar
Overall length : 1m98
Length bearing hull : 1m53
Total width : 1m55
Width bearing hull : 1m20
Dismounted length : 1m40
Weight : 11kg
|
|

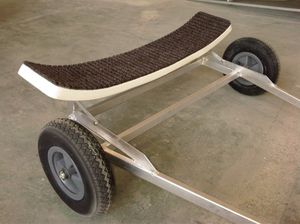

OPTIMIST aluminium trolley
Aluminium Optimist trolley: Lighter than ref 3200, and easy to fit, seconds to remove, and take in your car chest. Better for top sailors
|
|
DINGHY galvanized trolley
galvanised steel trolley for all dinghies 3,50 m boat lenght 4,75 m (Equipe, Laser, 420, 470...) Very strong, with stainless steel wheel axles et screws
|
|
Launching trolley CATA2
Catamarans from 15 to 20 feet
Chassis anodic aluminium
4 bunks of yellow protection (good visibility)
4 low pressure wheels
Adjustable drawbar (2 axes) and dismountable in 2 parts
Overall length: 3m30
Width bearing adjustable hull: 2m17 with 3m00
Dismounted length: 1m50
Weight: 23kg
Launching trolley CATA2L
Catamarans from 15 to 20 feet
Chassis anodic aluminium
4 bunks of yellow protection (good visibility)
2 low pressure big wheels
Adjustable drawbar (2 axes) and dismountable in 2 parts
Overall length: 3m30
Width bearing adjustable hull: 2m17 with 3m00
Dismounted length: 1m50
Weight: 26kg
|
|
Trolley shop standup jet-ski AJB
Adapt to all the standup jets ski
Chassis anodic aluminium
4 bunks of protection
4 swivelling casters
Length of the slopes: 1m00
Total width: 0m50
Distance between centres of the slopes: 0m31
Total height: 0m29
Weight: 8kg
Trolley shop stroke jet-ski AJS
Adapt to all the stroke jets ski
Chassis anodic aluminium
6 bunks of protection
4 swivelling casters
Length of the slopes: 1m20
Total width: 0m70
Distance between centres of the slopes: 0m51
Total height: 0m30
Weight: 11kg
|
|
Launching trolley to JET1
Adapt to all the standup jet-ski
Chassis anodic aluminium
4 bunks of yellow protection (good visibility)
4 low pressure wheels
Drawbar of traction dismountable (option)
Overall length: 1m13
Length of the slopes: 1m00
Total width: 0m69
Distance between centres of the slopes: 0m31
Total height: 0m50
Weight: 17kg
Launching trolley to JET1L
Adapt to all the standup jet-ski
Chassis anodic aluminium
4 bunks of yellow protection (good visibility)
4 low pressure big wheels
Drawbar of traction dismountable (option)
Overall length: 1m17
Length of the slopes: 1m00
Total width: 0m76
Distance between centres of the slopes: 0m31
Total height: 0m51
Weight: 24kg
|
|
Launching trolley JET4L
Adapt to all the stroke jet-ski
Chassis anodic aluminium
6 bunks of yellow protection (good visibility)
2 low pressure big wheels
Drawbar of adjustable and dismountable
1Towing hitch
Jockey big wheel (option)
1 winch with strap
1 bunk of adjustable stem
Overall length: 2m75
Length of the slopes: 1m20
Total width: 1m10
Distance between centres of the slopes: 0m51
Total height: 0m49
Weight: 35kg
Maximum speed. 15 kmh
|
|
Launching trolley ANEX2
Dinghies - Tenders - Inflatable boats..
Chassis anodic aluminium
Bunks of protection stem
2 low pressure wheels
Dismountable drawbar in 2 parts
Towing hitch & jockey big wheel (option)
Support in "V" adjustable on drawbar
Directional Bunks
Overall length: 3m30
Length bearing hull : 2m90
Total width: 1m70
Width bearing hull: 1m50
Distance between centres bunks: 0m80
Dismounted length: 1m50
Weight: 13kg
Launching trolley ANEX2L
Dinghies - Tenders - Inflatable boats...
Chassis anodic aluminium
Bunks of protection stem
2 low pressure big wheels
Dismountable drawbar in 2 parts
Towing hitch & jockey big wheel (option)
Support in "V" adjustable on drawbar
Directional Bunks
Overall length: 3m30
Length bearing hull : 2m90
Total width: 1m80
Width bearing hull: 1m50
Distance between centres bunks: 0m80
Dismounted length: 1m50
Weight: 17kg
|
|
Carrying capacity from 640 up to 940 kg, maximum length 7080 mm
Tipping, with brakes
Provided with rollers
|
|
Launching trolley ANEX2
Dinghies %u2013 Tenders %u2013 Inflatable boats%u2026
Chassis anodic aluminium
Bunks of protection stem
2 low pressure wheels
Dismountable drawbar in 2 parts
Towing hitch & jockey big wheel (option)
Support in %u201CV%u201D adjustable on drawbar
Directional Bunks
Overall length: 3m30
Length bearing hull : 2m90
Total width: 1m70
Width bearing hull: 1m50
Distance between centres bunks: 0m80
Dismounted length: 1m50
Weight: 13kg
|
|
|
|
