Jam cleats for sailboats include all fittings used to hold lines under tension aboard such craft.
These devices are used with sheets, downhaul blocks, halyards, reef lines and all other lines which must be held under load.
Several tensioning systems are used, whether the cleat is metal or a small plastic device.
- Clam cleats, with or without a line guide, hold lines in a notched groove. The line's diameter must be slightly larger than that of the groove. They are used for light loads on lines of small diameter. Some are articulated for quick release. Accidental release is possible.
- Cam cleats pinch lines between two notched, spring-loaded jaws, and are suitable for moderate loads. They can be used to hold lines exiting blocks, or on rotating towers for mainsail sheets. They are unfortunately not entirely foolproof. An awkward gesture can release the line.
- Line clutches are more complex. The line passes through a tubular guide, and a lever activates a notched clamp that holds the line fast. They are extremely reliable, and are used to hold medium- to large-diameter lines under considerable load.
Choice will depend on the load on the line and the required degree of reliability. Line diameter is another important factor.
 |
 |
Jam cleat for sailboats ZS0810 Spinlock
Use the ZS Series for larger diameters and high loads with controlled release Features and Benefits Holds high tech rope securely at its safe...
 |
 |
Jam cleat for sailboats (1 to 6 mm rope) CL211 MK2 Clamcleat
A neat, compact alloy cleat. Manufactured from aluminium for light weight and durable performance. The CL211 Mk2 is available in two finishes: 1. CL211...
 |
 |
Jam cleat for sailboats (1 to 6 mm rope) 0624-2103 China Industry & Marine Hardware
Cleat For Ropes has been presented above,...
 |
 |
Jam cleat for sailboats S11768(B)-82 YCH Ind. Corp.
YCH deck & cabin hardware products are mainly made by precision casting with highly mirror polished...
 |
 |
Cam cleat with fairlead for sailboats 310 KG | KJ3 Karver Systems
HIGH PERFORMANCE CAM CLEAT We have developed a new range of cam cleats using the KARVER principles of low weight, high strength, size and reliability. DESIGN The closed aluminum structure strengthens...
 |
 |
Cam cleat with fairlead for sailboats 30016 Wichard
Commentary Complete range of cam cleats Design optimized for...
 |
 |

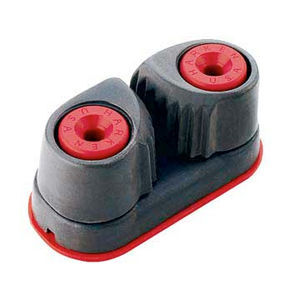

Cam cleat for sailboats 280 Harken
Multiple rows of high-load ball bearings reduce friction so cams open easily for snap-down, rather than draw-through...
 |
 |
Cam cleat for sailboats HT 91185 Holt
Composite and aluminum versions with new teeth configuration for...
 |
 |
Cam cleat with fairlead for sailboats 502.022 Antal
The particular stainless and plastic cam teeth...
 |
 |
Cam cleat for sailboats 70XXX SERIES Barton Marine
Manufactured from a composite Kevlar/Zytal material and available in 3 sizes to accept lines up to 14mm in diameter. This advanced material offers performance advantages over carbon fibre and conventional glass-reinforced...
 |
 |
Cam cleat for sailboats CAMLAN HT08 Sprenger
high quality Camlan - abrasion proof - temperature...
 |
 |

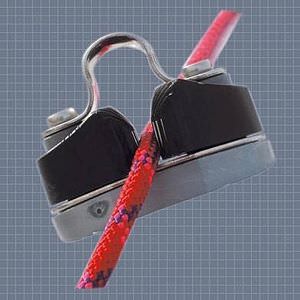

Cam cleat with fairlead for sailboats Nautos
Composite and aluminum versions with new teeth configuration for...
