FULL MORTISE TEMPLATE HINGE
3535, 4040, 4545 (3.5"X3.5", 4"X4", 4.5"X4.5")
Material: Brass
Finish: Polished Brass (PB)
Chrome (CR)
Supplied with Screws
Meets ANSI specs.
OR with Ball Marine bearings -- 4040B, 4545B
Ball bearings contained in 2 rings for boats ensure smooth movement and durability.
Perfectly extruded material ensures even thickness with smooth edges.
Special clear lacquer is used for extra-hard surface and extra-long protection.
Material: Polished Brass (PB)
Satin Chrome (SC)
Antique Brass (AB)
Finials also available.
VISIT OUR WEBSITES FOR MORE INFORMATION:
www.sugatsune.co.jp (Sugatsune Japan)
www.sugatsune.com (Sugatsune America)
www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK site now under construction.
E-mail: export@sugatsune.co.jp
|
|
304 B Series STAINLESS STEEL CONCEALED HINGE
(Stainless Steel Mount sold separately)
304B-46/9, 304B-46/14, 304B-46/19 Free swinging
304B-C46/9, 304B-C46/14, 304B-C46/19 Self-Closing
Material: 304 Stainless Steel, Polished Finish
Sugatsune has a wide range of concealed marine hinges for industrial, furniture for boats, or architectural applications.
Please visit our website or our PDF catalogues here for further information about these and other similar products.
Many Stainless Steel Concealed Hinges Available.
|
|
JH-25 or JH-35 Soft-Close Dampening Hinge
(Catalogue #152, Page 181)
Bracket: PB Plastic
Cap: Polypropylene
Damper: 304 Stainless Steel
Colour: Dark Grey
(Screws not included)
JH-25 Torque per Pair: 31-51 kgf/cm (27-44 lbs/inch)
JH-35 Torque per Pair: 51-71 kgf/cm (44-61 lbs/inch)
Soft-close damper keeps lid from slamming shut
Operating Temperature: 0~40C (32~104F)
Operating angle: 115 degrees / Dead angle: 5 degrees
A-type damper: Damper works counterclockwise
B-type damper: Damper works clockwise
Sold per pair(Each of A/B type)
Visit our websites for more dampening marine hinges and dampers.
http://www.sugatsune.co.jp
http://www.sugatsune.net
http://www.sugatsune.com
E-mail: export@sugatsune.co.jp
|
|
ELEGANCE AND FUNCTIONALITY

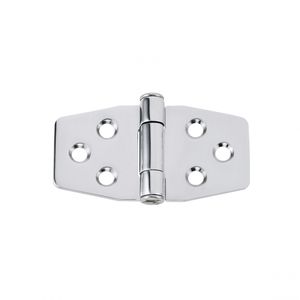

The Star line includes marine hinges and marine latches in 316 stainless steel with a high gloss finish in a wide range of models and sizes; their modular solution allows interchangeable between hinges shapes. The same style is used for marine cleats and marine bollards to offer unique design for deck hardware. The solid shine of the stainless steel makes them ideal accessories for high class interior and exterior applications, where details make the difference.
|
|
LIFT-OFF HINGE
Lift-Off Hinge
Material: 304 stainless steel
Finish: Satin
Screws not included
|
|
100 Series Butt Hinge
Material: Brass
Finish: Polished Brass (PB)
Satin Nickel (SN)
Chrome(CR)
Supplied with screws. |
|
Piano Hinge LSD-30 304 Stainless Steel
Material: 304 Stainless Steel
Finish: Satin
Screws not included
|
|
This rugged latch provides concealed operation by installing within the wall of the compartment and mating with a striker plate installed on an overlapping door. Its adjustable fit accommodates variations in panel thickness and door overhang dimensions. Marine-grade corrosion-resistant construction satisfies the most demanding applications.
Product Features and Benefits
Heavy-duty latch operates with a rounded retractable pin protruding from cabinet wall for actuation. The mating striker plate features a grooved ramp to engage the retractable latch pin, for convenient slam-shut operation.
- Latch body fits enclosure panels for boats from 3 mm (.125") to 19 mm (.75") thick
- Adjustable threaded design mounts quickly and easily in a single round hole
- A ring on internally mounted portion of latch provides safety backup for opening door from inside of enclosure
- 6.5 mm (.26") hole in latch pin provides option for padlocking security
- All 300 series stainless steel construction |
|
IT-S, IT-M STAINLESS STEEL TORQUE HINGE FOR MONITORS & DISPLAYS
Designed for holding monitors, displays etc. in position.
Body: 304 Stainless Steel
Shaft: 303 Stainless Steel
Washer: Phosphor Bronze
Spring Washer: Steel
Finish: Polished
(Screws not included.)
Torque per piece (kgf/cm):
IT-S25 35.7 kgf/cm (31 lbs/inch) +/- 20%
IT-S35 25.2 kgf/cm (22 lbs/inch) +/- 20%
IT-M50 71.4 kgf/cm (62 lbs/inch) +/- 20%
IT-M70 51.0 kgf/cm (44 lbs/inch) +/- 20%
*20,000 life cycles based on movement within 45 degree range.
Visit our websites for more torque marine hinges.
http://www.sugatsune.co.jp
http://www.sugatsune.com
http://www.sugatsune.net
e-mail: export@sugatsune.co.jp
|
|
LSK STAINLESS STEEL HINGE
316 Stainless Steel Construction.
Satin Stainless Steel Finish.
Several sizes available from 51mm to 152mm height.
Please visit our website or our PDF catalogues here (catalog #152, page 167) for more information about this and other butt marine hinges.
sugatsune.co.jp (Sugatsune Japan)
sugatsune.com (Sugatsune America)
sugatsune.net (Sugatsune America- Industrial)
|
|
SFTH - STAINLESS STEEL TORQUE HINGE
Designed for holding lid/door in position.
Stainless Steel construction for corrosive environments.
Operating Temperature: -20C to 60C (-4F to 140F)
Body: 304 Stainless Steel and 301 Stainless Steel
Shaft: 303 Stainless Steel
5 sizes/torque ranges available from 5 to 58 kgf-cm |
|
STAINLESS STEEL SPRING HINGE
Material: 304 Stainless Steel
Finish: Satin
Self-closing
Adjustable closing speed
Indoor or outdoor use
No screws supplied
|
|
Visit our Sugatsune's website for our of "XL" line of 304 Stainless Steel Marine hinges and Locks for glass.
http://www.sugatsune.com
XL-GH-01-600 GLASS DOOR HINGE
Material: 304 Stainless Steel
Finish: Polished
Door sizes:Max. H 450mm (17-3/4") x W 1300mm (51")
Thickness 4~8 mm(5/32" - 5/16")
XL-GH01-250 GLASS DOOR HINGE
Material: 304 Stainless Steel
Finish: Polished
Door sizes:Max. H 400mm (15-3/4") x W 600mm (23-5/8"")
Thickness 4~8 mm(5/32" - 5/16")
XL-GC-04
Glass Door Pivot Hinge
Inset pivot hinge for glass boat doors
Door size: Max. W500 X H1200 x t8mm
Door weight: Max. 12Kg/pair
Sold per pair
Glass Bracket for XL-GC04
Sailboat top boat board hinge bracket for XL-GC04 pivot hinge
Xl-CC-07
Overlay Glass Door Hinge
Overlay hinge with catch for glass doors
|
|
SMH-83 STAINLESS STEEL TABLE FOR BOATS TOP FOR BOAT HINGE
Material: 304 Stainless Steel
Finish: Satin
Chrome
Door for boats Size: Max. W450 X H700
(W17-23/32" X H27-9/16" X t53/64")
VISIT OUR WEBSITES FOR MORE INFORMATION ON THIS AND OTHER STAINLESS STEEL MARINE HINGES:
http://www.sugatsune.co.jp (Sugatsune Japan)
http://www.sugatsune.com (Sugatsune America)
http://www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK website now under construction.
E-mail: export@sugatsune.co.jp
|
|
SMH-30, SMH-40 BRASS TABLE FOR BOAT TOP FOR BOATS HINGE
Material: Brass
Finish: Polished Brass
Satin Nickel
Chrome
Door for boats Size: Max. W450mm X H700mm
(W17-23/32" X H27-9/16" X t53/64")
Door Weight: Max. 4 kg/pair (8.8 lbs/pair)
VISIT OUR WEBSITES FOR THIS AND OTHER MARINE HINGES:
http://www.sugatsune.co.jp (Sugatsune Japan)
http://www.sugatsune.com (Sugatsune America)
http://www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK website now under construction.
E-mail: export@sugatsune.co.jp
|
|
STAINLESS STEEL LID STAY
Positive stop to keep flap opened Left or right hand installation Material: 304 Stainless Steel Finish: Satin Load Capacity: 30kg/ea (66 lbs)
|
|
STAINLESS STEEL MULTI-ANGLE DOOR FOR BOATS STAY
U-3031
Ratchet stay holds flap lid at multiple angles.
Non-handed.
Thin and compact design.
Load capacity for upward opening: 7kg (15 lbs)/each
Material : 304 Stainless Steel
Finish : Satin
VISIT OUR WEBSITES FOR MORE DOOR STAYS
http://www.sugatsune.co.jp (Sugatsune Japan)
http://www.sugatsune.com (Sugatsune America)
http://www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK website under construction.
|
|
SPRING LOADED LID STAY
Spring Mechanism assists lifting door for boats and holds in open position.
2 types available for side panel for boat or face front mount
Material: Body & Bracket-304 Stainless Steel Arm-Polyacetal
Application: Toy box, Outdoor stora
|
|
