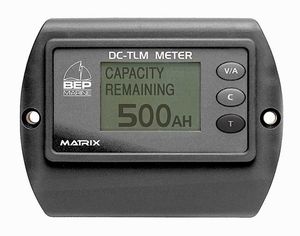

The 600 - DCTLM is designed for installations where space is not available to fit two meters. Offering most of the same functions and settings as the 600-DCM and 600-TLM.
- A compact and economical installation.
- A full range of selectable legends for battery banks and tanks is available in the set-up menu.
- Selectable legends allow full information to be shown on the screen.
- LCD screen draws 70% less than equivalent LED screens.
|
|
|
Fireboy®-Xintex® has designed a line of liquid level gauges that are built to the quality standards of all our equipment. Senders are available for either threaded or flanged top-of-tank installation. Choose either one-tank or two-tank monitors with appropriate threaded or flanged senders. Order online or call our factory at 1-866-350-9500 for Assistance and Technical Information. Not interchangeable with the WTG System Series, which are three-wire connections. (These items have two-wire hook-ups.)
|
|
In addition to providing complete management of your vessel's fuel flow and fuel remaining, Navman's Fuel 3100 utilizes speed data from GPS or paddlewheel input to calculate real-time fuel economy data. The Fuel 3100 can be programmed to display these values in miles per gallon or litre.
This important information allows you to determine the optimum throttle and trim settings for single and twin engine boats. This will save you money on fuel and minimize long-term engine wear by running your engines at their most efficient settings.
|
|
|
The VDO Ocean Line fuel gauge provides reliable information about the fuel level in the tank. A lever-type sensor is used in conventional shallow tanks. We also offer a series of rugged tubular-type sensors for ocean-going yachts and tank depths between 220 and 1050 mm.
|
|
|
|
|
|
|
Installed and ready to use in 30 minutes!
Gobius is the first level indicator in the world that measures from the outside. Installing Gobius to your tank is very easy. Instead of the traditional way of installation, i.e taking the tank apart and drilling holes, you simply attach the sensors to the tank on the outside.
All Gobius products measure from the outside
Very easy to install and setup
Suitable for all tank materials; stainless steel/steel, aluminum, plastic and fibre glass
Gobius can be retro-fitted to any shape or size of a tank
Analouge output for gauges from Wema, VDO, Faria, Teleflex, Phillipi…
Supports NMEA 2000
Extremely low electricity consumption, less than 40 mA (12 Volts)
Support 12 – 24 Volts
30 minutes to install
On the sensor there is a disc of tape that is provided to attach the sensor directly onto the surface of your tank. The panel may be placed in the washroom. All necessary cables and plugs needed to connect the sensors and the panel with the control unit are included.
Very easy to calibrate
No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds.
The Gobius technology (patented)
Each sensor that is placed onto the tank wall consists of a shaker and an accelerator. When the shaker creates a vibration in the tank wall, the accelerator measures the size of the vibration and passes the data on to the control unit.
Art No 970459
|
|
|
|
|
|
|
SENDER LEVEL WITH ALARM 4-20 MA. SIZE 10 TO 100 CM
Codice prodotto: HP--G00XX4-20
INTERNATIONAL PATENT.
Our new capacitive level sensor provides measurement accuracy, reliability and quality. It was designed to respond to the request of a sensor accurate, durable, universal and easy to use. The following features will reflect the advantages:
- The capacitive level sensor is compatible with all 4-20 mA gauges on the market. It is not compatible with STD (240/33 Ohm) and VDO type (10/280 ohms) gauges.
- It can be connected, properly powered, to the gauge replacing any other existing 4-20 mA sensor, with no special precautions needed.
- It is equipped with an exit alarm that may be audible or visible, and is programmed to 20% (for %u2018empty%u2019 alarm) or 80% (for %u2018full%u2019 alarm).
Capacitive level sensors can be used for FUEL, WATER and WASTE WATERS.
The capacitive sensor is currently produced with lengths ranging from 10cm to 100cm.
The %u2018Reed%u2019 level sensor is universal and therefore can be used for all liquids (white waters, black waters, fuel). The capacitive sensor instead exploits the properties of the liquid the level of which is to be measured and therefore has a structure created on purpose for the liquid of interest. In particular, we produce two types of capacitive level sensors, one concerning the fuel sector and one concerning the white waters and black waters%u2019 sector (for measuring the water level the sensor is then the same but has two different types of alarms %u2013 %u2018empty%u2019 for white waters or %u2018full%u2019 for black waters).
|
|
| ... products without information |
| |
The 600 - DCTLM is designed for installations where space is not available to fit two meters. Offering most of the same functions and settings as the 600-DCM and 600-TLM.
- A compact and economical installation.
- A full range of selectable legends for battery banks and tanks is available in the set-up menu.
- Selectable legends allow full information to be shown on the screen.
- LCD screen draws 70% less than equivalent LED screens.
|
|
|
Fireboy®-Xintex® has designed a line of liquid level gauges that are built to the quality standards of all our equipment. Senders are available for either threaded or flanged top-of-tank installation. Choose either one-tank or two-tank monitors with appropriate threaded or flanged senders. Order online or call our factory at 1-866-350-9500 for Assistance and Technical Information. Not interchangeable with the WTG System Series, which are three-wire connections. (These items have two-wire hook-ups.)
|
|
In addition to providing complete management of your vessel's fuel flow and fuel remaining, Navman's Fuel 3100 utilizes speed data from GPS or paddlewheel input to calculate real-time fuel economy data. The Fuel 3100 can be programmed to display these values in miles per gallon or litre.
This important information allows you to determine the optimum throttle and trim settings for single and twin engine boats. This will save you money on fuel and minimize long-term engine wear by running your engines at their most efficient settings.
|
|
|
The VDO Ocean Line fuel gauge provides reliable information about the fuel level in the tank. A lever-type sensor is used in conventional shallow tanks. We also offer a series of rugged tubular-type sensors for ocean-going yachts and tank depths between 220 and 1050 mm.
|
|
|
|
|
|
|
Installed and ready to use in 30 minutes!
Gobius is the first level indicator in the world that measures from the outside. Installing Gobius to your tank is very easy. Instead of the traditional way of installation, i.e taking the tank apart and drilling holes, you simply attach the sensors to the tank on the outside.
All Gobius products measure from the outside
Very easy to install and setup
Suitable for all tank materials; stainless steel/steel, aluminum, plastic and fibre glass
Gobius can be retro-fitted to any shape or size of a tank
Analouge output for gauges from Wema, VDO, Faria, Teleflex, Phillipi…
Supports NMEA 2000
Extremely low electricity consumption, less than 40 mA (12 Volts)
Support 12 – 24 Volts
30 minutes to install
On the sensor there is a disc of tape that is provided to attach the sensor directly onto the surface of your tank. The panel may be placed in the washroom. All necessary cables and plugs needed to connect the sensors and the panel with the control unit are included.
Very easy to calibrate
No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds.
The Gobius technology (patented)
Each sensor that is placed onto the tank wall consists of a shaker and an accelerator. When the shaker creates a vibration in the tank wall, the accelerator measures the size of the vibration and passes the data on to the control unit.
Art No 970459
|
|
|
|
|
|
|
SENDER LEVEL WITH ALARM 4-20 MA. SIZE 10 TO 100 CM
Codice prodotto: HP--G00XX4-20
INTERNATIONAL PATENT.
Our new capacitive level sensor provides measurement accuracy, reliability and quality. It was designed to respond to the request of a sensor accurate, durable, universal and easy to use. The following features will reflect the advantages:
- The capacitive level sensor is compatible with all 4-20 mA gauges on the market. It is not compatible with STD (240/33 Ohm) and VDO type (10/280 ohms) gauges.
- It can be connected, properly powered, to the gauge replacing any other existing 4-20 mA sensor, with no special precautions needed.
- It is equipped with an exit alarm that may be audible or visible, and is programmed to 20% (for %u2018empty%u2019 alarm) or 80% (for %u2018full%u2019 alarm).
Capacitive level sensors can be used for FUEL, WATER and WASTE WATERS.
The capacitive sensor is currently produced with lengths ranging from 10cm to 100cm.
The %u2018Reed%u2019 level sensor is universal and therefore can be used for all liquids (white waters, black waters, fuel). The capacitive sensor instead exploits the properties of the liquid the level of which is to be measured and therefore has a structure created on purpose for the liquid of interest. In particular, we produce two types of capacitive level sensors, one concerning the fuel sector and one concerning the white waters and black waters%u2019 sector (for measuring the water level the sensor is then the same but has two different types of alarms %u2013 %u2018empty%u2019 for white waters or %u2018full%u2019 for black waters).
|
|
| ... products without information |
| |
|
|
|
|
|
Installed and ready to use in 30 minutes!
Gobius is the first level indicator in the world that measures from the outside. Installing Gobius to your tank is very easy. Instead of the traditional way of installation, i.e taking the tank apart and drilling holes, you simply attach the sensors to the tank on the outside.
All Gobius products measure from the outside
Very easy to install and setup
Suitable for all tank materials; stainless steel/steel, aluminum, plastic and fibre glass
Gobius can be retro-fitted to any shape or size of a tank
Analouge output for gauges from Wema, VDO, Faria, Teleflex, Phillipi…
Supports NMEA 2000
Extremely low electricity consumption, less than 40 mA (12 Volts)
Support 12 – 24 Volts
30 minutes to install
On the sensor there is a disc of tape that is provided to attach the sensor directly onto the surface of your tank. The panel may be placed in the washroom. All necessary cables and plugs needed to connect the sensors and the panel with the control unit are included.
Very easy to calibrate
No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds.
The Gobius technology (patented)
Each sensor that is placed onto the tank wall consists of a shaker and an accelerator. When the shaker creates a vibration in the tank wall, the accelerator measures the size of the vibration and passes the data on to the control unit.
Art No 970459
|
|
|
|
|
|
|
SENDER LEVEL WITH ALARM 4-20 MA. SIZE 10 TO 100 CM
Codice prodotto: HP--G00XX4-20
INTERNATIONAL PATENT.
Our new capacitive level sensor provides measurement accuracy, reliability and quality. It was designed to respond to the request of a sensor accurate, durable, universal and easy to use. The following features will reflect the advantages:
- The capacitive level sensor is compatible with all 4-20 mA gauges on the market. It is not compatible with STD (240/33 Ohm) and VDO type (10/280 ohms) gauges.
- It can be connected, properly powered, to the gauge replacing any other existing 4-20 mA sensor, with no special precautions needed.
- It is equipped with an exit alarm that may be audible or visible, and is programmed to 20% (for %u2018empty%u2019 alarm) or 80% (for %u2018full%u2019 alarm).
Capacitive level sensors can be used for FUEL, WATER and WASTE WATERS.
The capacitive sensor is currently produced with lengths ranging from 10cm to 100cm.
The %u2018Reed%u2019 level sensor is universal and therefore can be used for all liquids (white waters, black waters, fuel). The capacitive sensor instead exploits the properties of the liquid the level of which is to be measured and therefore has a structure created on purpose for the liquid of interest. In particular, we produce two types of capacitive level sensors, one concerning the fuel sector and one concerning the white waters and black waters%u2019 sector (for measuring the water level the sensor is then the same but has two different types of alarms %u2013 %u2018empty%u2019 for white waters or %u2018full%u2019 for black waters).
|
|
Fuel oil meters with threaded or flanged connection. Electronic counter with display of total volume, subtotal volume (can be reset) in m3, litres or US gallons. Flow rate per minute or hour and operation hours. Transmitter with 2 configurable signal outputs for volumetric pulses, flow rate (current or frequency) or limit switch.
Your benefits :
Reliable monitoring and flexible control of the system without additional transducers.
Simplifying burner settings for optimum performance.
Simple commissioning, maintenance-free.
Space saving installation without requirement for straight inlet or outlet paths.
Easy to install without restriction either horizontally or vertically.
Maximum safety due to integral particle filter in meter inlet.
|
|
Oil meters with mechanical roller counter. Versions with threaded or flanged connections as well as reed switch RV or inductive pulser IN (NAMUR IEC 60947-5-6).
Display in litres, wide measuring range with max. permissible error of ±1% of reading.
Your benefits :
High operational safety due to vibration resistance.
Space saving installation without requirement of straight inlet and outlet paths.
Easy to install without restriction either horizontally, vertically or inclined.
High operational safety due to integral safety filter in the meter inlet. Reduces effort on start-up.
Meters for heavy fuel oil should have a nominal diameter of DN 20 or larger.
|
|
|
|
