Our dock and pontoon lights are available in three sizes and are equipped with a low glare, fluorescent light bulb that illiuminates a 360 degree area. All of our casings are built with 5052 H32 Marine Grade aluminum and white powder coated inside and out, to withstand the harshest weather & salt water conditions. (Custom colors available). Any one of our lights can be installed via a direct feed or controlled by a photocell.
Unlike other dock lights on the market (that are built with vinyl or composite materials), our sturdy aluminum casing will provide years of lasting durability and performance. In spite of harsh weather conditions, the structural integrity of the light casing won't distort or crack and is backed by our warranty.
|
|
Lighting is an important aspect of any marina development. Electro-Tec can offer both functional and aesthetic lighting solutions. All Electro-Tec pedestals are supplied with photocell controlled 15W energy saving lighting as standard and can be fitted with the following additional features:
L.E.D. – replacing the standard 15W energy saving illumination, L.E.D. provides a long term solution to marina illumination. Electro-Tec L.E.D. lighting not only consumes up to 85% less electricity than our standard lighting, it will last for up to 15 years based on 8 hours use per night.
L.E.D. Deck Lighting (pictured)– designed to offer a unique appearance, deck lighting can be provided in most colours and offers the same advantages as above.
Electro-Tec also offer a number of lighting solutions including underwater lighting, low and high level illumination. Please contact us for more details.
|
|
The Mariner is a lighted bollard that can stand from 11 inches to 96 inches tall and can be used in various applications from marina docks, to landscaped areas, around pools, golf courses, parking lots and beyond. The housing is made of engineered resin to withstand the harsh marine and land environments form Alaska to the tropics. The mariner became available in May 2007 and comes with a lifetime warranty.
Product Specifications:
Can be configured with a 5 Watt, 7 Watt or 13 Watt Fluorescent Bulb
Can be mounted to a 4 inch. PVC Pipe to get the desired height
We can supply the mounting base and painted pole for any desired height
Lifetime Warranty on the engineered resin housing
Patent Pending
UL Listing Pending
|
|
MPL/MPM - Pontoon Light & Pontoon Marker
Pontoon illumination and identification can be provided by means of this bollard. The units incorporate a 6A MCB and P12R photocell controlling 2D16 lamp control gear located within a 3mm opal polycarbonate diffuser.
|
|
|
From the standard 360 degree low glare option to the modern looking quad head, we are confident we have a light for every occasion. Our solar powered marker lights are ideal for marking out hazardous edges and areas along quaysides, access bridges, pontoons, mooring fingers, footpaths, road ramps, etc. Illuminated pier identification bollards and access bridge lights are included in our extensive range of lighting products.
|
|
Electro-Tec SOS Pedestals are available in both ESB and VX ranges. SOS pedestals can incorporate the following equipment:
Fire Fighting – Extinguishers or Hose
Life Buoy
Fire Axe
Audible Visual Alarms
Integration into fire panel systems (Call points)
First Aid Kits
Emergency Telephone
|
|
Electro-Tec SOS Pedestals are available in both ESB and VX ranges. SOS pedestals can incorporate the following equipment:
Fire Fighting – Extinguishers or Hose
Life Buoy
Fire Axe
Audible Visual Alarms
Integration into fire panel systems (Call points)
First Aid Kits
Emergency Telephone
|
|
An accident can easily happen, also at a marina. With an up-to-date rescue equipment package you are always prepared for such an emergency.
Seijsener Marina Services has what you need: from a rescue ladder to a complete rescue station with lighting. By installing lighting and a sign showing, for instance, the jetty number on your rescue station, you can get optimum use out of this facility. Aside from their practical use, Seijsener’s robust and colourful life-saving equipment can add to the visual appeal of your jetty.
Seijsener offers a large range of marina emergency service equipment, including:
-stainless steel AISI 316 rescue ladders;
-emergency pedestals and cabinets;

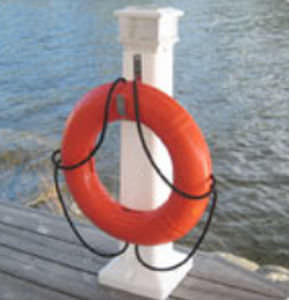

-life buoy stands;
-fire extinguishers in housing;
-complete rescue stations that match perfectly with our service pedestals Arctic, Pacific and Atlantic.
-fire hydrants.
|
|
|
|
|
|
|
The ESB Mini is a compact variation of the ESB Power Pedestal and is manufactured from the same high quality materials. Designed specifically for marinas requiring basic services or less obtrusive deck mounted equipment, the ESB Mini can provide power up to 32A and is supplied as standard with 15W photocell controlled lighting. The ESB mini is available in most colours and can also be supplied with L.E.D. lighting.
Metering is also available with a maximum of two metered sockets per unit and can utilise Electro-Tec Sentinel metering systems.
Materials
The pedestal outer material can be provided in any material including:
PVC Foam
Electro-Tec only supply UV stable PVC foam materials. PVC is tried and tested in environments worldwide and is available in almost any colour.
Aluminium and Plastic Composite
Composite is an incredibly durable and UV stable material. Consisting of two 0.5mm Aluminium shells thermo-bonded to a polyethylene core, composite is incredibly durable. Due to the unique properties of this material, it also acts as a great insulator by keeping electrical equipment at a constant temperature and within its operating temperatures. This material is available in almost any colour including brushed stainless effect and mirror finish.
|
|
|
The ESB Power pedestal has evolved continually for over a decade. Now capable of accommodating more equipment than ever before the ESB is a versatile option for marina services. The ESB has a distinct advantage to its competition – it will not corrode. The ESB internal support chassis is manufactured from a heavy duty medium density polyethylene and contains no metal parts. This means it can be installed in the most exposed locations and will never suffer from corrosion.
|
|

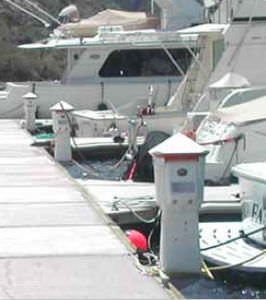

Accmar’s watertight dock power pedestals are built in the USA to withstand the harshest weather and dockside conditions following strict UL guidelines to ensure safety. Our dock pedestals are available in two sizes: 45" or 38" in height.
Accmar’s power pedestal comes standard with outlet capacity for five receptacles (up to 200 AMPS max per pedestal), water faucet and one hose holder. All are compactly mounted in high quality 5052 H32 marine grade aluminum with 1/8" wall thickness & white powder coated casing (custom colors available).
Each marina power pedestal is equipped with an attractive sensor controlled, low glare, fluorescent lighting fixture to illuminate your dock area. Stainless steel latched door hardware protects the unit’s Square D circuit breakers. Cable TV/telephone receptacle/electric meter & key lock hardware can be added upon request. Special design features ensure maximum life of the unit.
|
|
|
|
|
|
|
For marinas wanting to make a statement, the VX range is the only way to do it. Combining style, practicality and innovative highly durable materials the VX is the ultimate in pedestal design. The VX is the product of a design program spanning several years. The objective - to create a pedestal using the most robust materials while not sacrificing on style and practicality.
The VX is manufactured from a durable composite material consisting of two 0.5mm Aluminium shells thermo-bonded to a polyethylene core, making composite incredibly durable. Due to the unique properties of this material, it also acts as a great insulator by keeping electrical equipment at a constant temperature and within its operating temperatures. This material is available in almost any colour including brushed stainless effect and mirror finish.
The VX internals are manufactured from a medium density polyethylene and no metal parts hence no corrosion – ever.
The VX is supplied with an innovative sliding door system. This system ensures all electrical equipment are offered the maximum amount of protection while keeping the appearance clean and flowing with no visible flaps and switches. Furthermore the sliding door system allows for easy installation and maintenance, simply unlock and open the door and perform the installation or maintenance as required.
|
|
SGPE basic marina service pillar / SGPE service pedestal for marinas
Marina service module made of impact-resistant PE. The blue coloured pedestal with white cap provides different combinations of electricity and water supply. Illumination of the deck by 2-3 halogen lamps. The services can be supplied for free, metered or alternatively pre-paid using Sep-key® or Sep-Card. Quick installation type.
|
|
|
|
|
|
|
The new Terminal Fire-Proof, designed and developed by Coelin with a particular focus on design and the use of ultramodern technologies, is an energy terminal that can be used in various sectors to meet the requirements of campsites, marinas and public areas in general, distributing and controlling energy services such as electricity, water, compressed air, telephone, TV, intercom, etc.
The simple and refined design combines harmoniously with the environment, becoming an integral part of the surrounding landscape.
All the functions attributed to this terminal, both as a service provider and as a device for illuminating the surrounding area (a real innovation) give this product its own special personality.
The Terminal Fire-Proof structure, designed for heavy-duty service, is built with a double-faced one-piece casing that is shockproof and offers superior stability.
This energy terminal is manufactured with materials that offer the highest resistance against chemical and atmospheric agents, salinity and UV radiation.
Since there are no metallic parts, the terminal offers enhanced insulation and will not rust.
The Terminal Fire-Proof can be supplied in different colours that are created during production.
|
|
|
|
|
|
|
Providing a healthy complement to other safety equipment, the Firehouse is a smart choice for any marina. Standard on the Firehouse are a night light to illuminate the dock and surrounding area, an alarm strobe light with siren, and a fire extinguisher. An optional 24" life ring is available. An innovative feature optional with the Firehouse is a remote control unit that automatically calls selected services when the alarm has been activated. The four-channel transmitter can call medical, fire, police, and general emergency services. Don't get caught off guard in the event of a dangerous situation; equip your Marina with the Firehouse and be prepared.
Main Features include:
13 watt photocell controlled fluorescent night light to illuminate dock and the fire extinguisher area
Alarm strobe light and siren are automatically activated when door is open or an optional life ring is removed
A 10 lb. ABC type fire extinguisher located in each cabinet
Easy access to fire extinguisher through a hinged clear polycarbonate door
Aluminum housing with oven-baked enamel finish with polycarbonate base and top
Optional 24" life ring
Optional remote control unit automatically calls selected emergency services
|
|
|
Card Meters are one option for the marina operator to recover money for electricity consumed in 'pre-pay' rather than credit format. The reconditioned Card Meters are accessed through customer reset flaps. A card is purchased with a pre-determined value loaded onto it which, when inserted into the meter, loads that value onto the meter. The meter then counts down the pre-loaded value until it is consumed. An emergency credit value of £1.00 is available on each meter. Alterations to the tariff / emergency credit value can be made by the use of a Meterman card.
|
|
|
|
|
|
|
The new Terminal Free Time, designed and developed by Coelin with a particular focus on design and the use of ultramodern technologies, is an energy terminal that can be used in various sectors to meet the requirements of campsites, marinas and public areas in general, distributing and controlling energy services such as electricity, water, compressed air, telephone, TV, intercom, etc.
The simple and refined design combines harmoniously with the environment, becoming an integral part of the surrounding landscape.
All the functions attributed to this terminal, both as a service provider and as a device for illuminating the surrounding area (a real innovation) give this product its own special personality.
The Terminal Free Time structure, designed for heavy-duty service, is built with a double-faced one-piece casing that is shockproof and offers superior stability.
This energy terminal is manufactured with materials that offer the highest resistance against chemical and atmospheric agents, salinity and UV radiation.
Since there are no metallic parts, the terminal offers enhanced insulation and will not rust.
The Terminal Free Time can be supplied in different colours that are created during production.
|
|
|
|
|
|
|

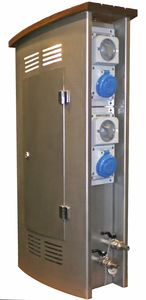

HDPE CABINET - STAINLESS STEEL MODEL
Service pedestals equipped with prepaid and/or consumption metered system are activated by a transponder, that is a contactless key, programmed by the manager by means of suitable decoder. This key is handed over to the customer at his arrival.
The centralized computation, that needs connection cables to the office, and the prepaid system can coexist in the same service pedestal.
By means of a directional transponder the marina manager can visualize on the service pedestal display the consumptions of energy and water for local computation.
TECHNICAL CHARACTERISTICS
Module:Built in compliance with CE and IEC 364-7-709
Protection class: IP 67
Cabinet:HDPE UV protection (250x350x800h mm) –
Stainlees steel AISI 316 L (170x250x750h mm)
Interlocked sockets:16A to 125A
Protections:Id 30mA – Main switch
Cable connection:3P+N+E – input/output 16 mm² to 300 mm²
Water supply:½” ball valve tap
Lighting:9W low-consumption florescent lamp
Electricity meter:Progressive electricity meter. Display kW/h consumption for each socket
Water meter:Liter-counter and display of progressive metering of each output
Pre-paid system on transponder
Communication:Intercom system
Connections:IP 67 Module, TV-SAT, Telephone, Internet
|
|
UM2I/UM4I
Non-Metered Option
Two or Four Way Bollards without the metering option. The switchgear is housed beneath weatherproof polycarbonate reset flaps which have a locking facility. The standard Residual Current Device arrangement is to provide one device for a two way unit and two for a four way. Alternative options are available upon request.
|
|
MEC4
A four way card metered pedestal in black acrylic capped ABS, with a tough 'pinseal' finish to greatly increase scratch resistance. The reconditioned card meters are accessible through reset flaps. Card metered pedestals allow you to receive money upfront for electricity, a valuable asset.
|
|
MEC 2+2
A four way card metered pedestal in black acrylic capped ABS, with a tough 'pinseal' finish to greatly increase scratch resistance. The reconditioned card meters are accessible through reset flaps. Designed to be installed in conjunction with the FRS range of remote connection units, all switch gear and metering is contained within the MEC2 main pedestal.
|
|
Maricer have introduced a new LED lighting panel, which can be fitted onto any of their range of marine service pedestals.
The LED panels are waterproof to IPX7 and are made entirely from tough, non-corrosive UV stable materials, to compliment the lighting diffuser used in the standard pedestal range. Each panel contains the latest multi chip white LED's and offer very low power consumption at 0.2 amp each with a 30,000 hour meantime before failure. Up to four panels can be mounted on to the lighting head giving you the option of directional lighting of your choosing on your pontoon system.
|
|
|
compact utilities service module Featuring electricity and water consumption measurement, activated by transponder.
|
|
Module Built in compliance with CEandlEC 364-7-709 standards
Protection class IP67
Material HDPE UV protection stainless steel AISI 316 L
|
|
utilities service module featuring electricity and water consumption
measurement, activated by transponder (contact-free identification system). Activation is easily attained by positioning each personalized transponder in close proximity to the service module control system.
|
|
|
The details count. The expertise of Poralu Marine is not limited to the manufacturing and installation of your marina. We offer a wide range of services and products to provide a maximum level of comfort to your customers. You can choose your service bollards, fuel and pump out stations, combining accessories such as handrails, ladders, boxes, cranes, berth number tags etc...
|
|

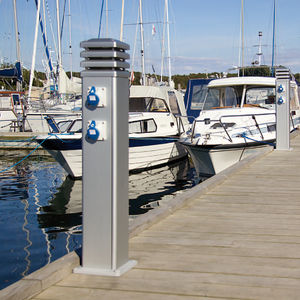

TallyKey's pedestals are made exclusively of quality materials, ensuring a long working life.
The pedestal itself is made of aluminium, while bolts, shafts and screws are in stainless steel.
If the pedestal has a lamp in the top, the "glass" is made of impact-resistant plastic.
The TallyKey T2 pedestal is thus strongly equipped to survive many years of outdoor use, even in the harsh and aggressive environment at a harbour.
A carefully thought-out detail is the special safety washers with which the base is mounted. If a pedestal is bumped or a boat departs from land and has forgotten to uncouple from the pedestal, the safety washers are broken first - the pedestal itself suffers no damage and it can be remounted immediately with new safety washers.
|
|
|

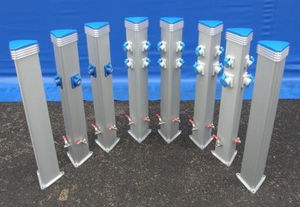

The Roline Range is manufactured in heavy-duty aluminium and powder coated to a colour or colours of your choice with stainless steel upgrade versions available upon request. The Roline unit can be equipped with single or three phase electrical sockets complete with overload and fault current protection, as well as low-level pontoon-facing illumination.
|
|
ELECTRICAL EQUIPMENT (MH6 & MH9)
Whilst Walcon does not manufacture marina electrical equipment. We have ensured that suitable units will fit our equipment. The modules illustrated (MH6) are manufactured by Sureline Electrical Modules Limited & Rolec Services Limited (Alternative types of equipment available from other manufacturers). The units incorporate walkway light, Miniature Circuit Breakers and Earth Leakage Circuit Breakers for both sockets mounted on the casing or remotely fixed. Various specifications for the rating and number of sockets are available. A remote socket outlet type MH9 can be supplied for use with the main control module.
|
|
Three Phase Pedestals
Large boats and super yachts demand a large electrical supply and the Maricer Three Phase Pedestal Range can accommodate this requirement. Shown here with two 400V 63A 3 Pin + Neutral + Earth IP67 Socket Outlets, each socket outlet is protected by an earth leakage and over current device. A 4 Pole isolator is incorporated into the design to enable safe pedestal isolation. As with all pedestals in the Maricer Range, illumination can be via 16W 2D lamps or LED with photocell 'dusk to dawn' operation
|
|
|
|
