Dock Finger: Best for the comfort of the user (Access on board and tie of the ropes easy) and optimal for the developer (no underwater maintenance of the concrete blocks, chains and mooring ropes), the catways are the ideal mooring system. Dredging of the port and possible management of seaweeds). Our catways with structures aluminum sized according to the characteristics of boats declines in 3 widths (0m40, 0m60 and 0m70).
MSE (Marina System and Equipment) revalues the projects of its customers by accompanying them in the conception, the realization and the maintenance of their port facilities.
Our experts, endowed with the last tools CAD and qualifications of a control office, study and carry out every work by dedicating to it know how to make for its height.
At the top of their technologies, our products with structures aluminum, made in accordance with the standards current, offers a high level of quality and design.
We build marinas, fishing harbors, boating centers, river stopping places, public or privative pontoons, jetties to passengers, floating or fixed pontoons, footbridges of access or crossing, catways, mooring arms, flat floating forms, fuel stations, artificial islands and the other innovations …
|
|
|
|
|
|
|
Dock Finger: Best for the comfort of the user (Access on board and tie of the ropes easy) and optimal for the developer (no underwater maintenance of the concrete blocks, chains and mooring ropes), the catways are the ideal mooring system. Dredging of the port and possible management of seaweeds). Our catways with structures aluminum sized according to the characteristics of boats declines in 3 widths (0m40, 0m60 and 0m70).
MSE (Marina System and Equipment) revalues the projects of its customers by accompanying them in the conception, the realization and the maintenance of their port facilities.
Our experts, endowed with the last tools CAD and qualifications of a control office, study and carry out every work by dedicating to it know how to make for its height.
At the top of their technologies, our products with structures aluminum, made in accordance with the standards current, offers a high level of quality and design.
We build marinas, fishing harbors, boating centers, river stopping places, public or privative pontoons, jetties to passengers, floating or fixed pontoons, footbridges of access or crossing, catways, mooring arms, flat floating forms, fuel stations, artificial islands and the other innovations …
|
|

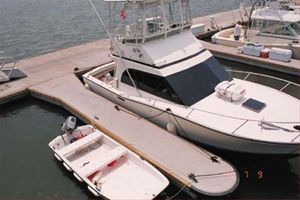

Mooring fingers
Mooring fingers are the most modern , efficient and safe way to berth small boats.
They are adjustable in length and number of floats according to the dimensions of the berthing boat. Manufactured in light and base options, the base option is provided with a wooden deck made from larch.
The design of fastening of the mooring fingers enables an individual approach to their location on the pontoon moorings.
|
|

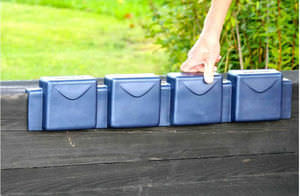

- Unlimited configurations
- Easy and quick assembly
- Environmentally friendly
- Light, sturdy and safe
- Maintenance free (100% plastic)
- Resistant to pollution and UV-rays
- Limited Lifetime Warranty
|
|
|
Anchor to a shoreline abutment or to a shoreline post with our heavy-duty stiff-arm. Light-duty stiff-arm bracket also available.
|
|
|
|
|
|
|
5,00 - 5,30 - 6,30 - 7,30 - 8,30 - 10,30 m MODELS

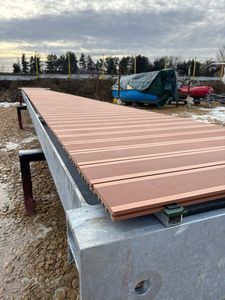

- The finger structure consists of a welded and hot dip zinc-plated steel frame. The frame consists of IPE 100 profiles for models 5,0 m and 5,3 m long, IPE 120 profiles for models 6,3 m and 7,3 m long, IPE 160 profiles for models 8,3 m and 10,3 m long, all being adequately wind-braced. The frame is equipped with reaction diagonal profiles placed on the connection side to the pontoon.
- The finger is connected to the pontoon through proper joints knees, working on polyamide self-lubricating bearings.
- The buoyancy is obtained thanks to respectively 2, 3, 4, 5, 8 or 13 floats in plastic. The floats are filled by expanded self-extinguishing (ISO DIS 1182.2 test method) closed cells polystyrene.
- On the frame are welded ovals rings for the mooring of boats.
- The upper side is covered by similteck staves dunnage to make walking comfortable and easy.
- Both sides are provided with bumpers made of polypropylene added with U.V. filters and are injection moulded; the head is provided with a special rotary bumpers in order to avoid risk of damage to the boats during mooring.
- Stainless steel bolts are used for every connection.
|
|
The distinctive touch.
Fingers are excellent for maximised berthing. The layout of fingers provides enhanced aesthetics and easy access to craft.
Equipped with a robust end fender, our fingers welcome you with security. Easy movement of the fingers with no drilling or cutting allows you to manage the layout of the berths now and into the future.
|
|
Fingers are excellent for maximised berthing. The layout of fingers provides enhanced aesthetics and easy access to craft.
Equipped with a robust end fender, our fingers welcome you with security. Easy movement of the fingers with no drilling or cutting allows you to manage the layout of the berths now and into the future
|
|
We supply different types of fingers. From heavy ones made of concrete to smaller ones made of aluminium, hot-dipped galvanised steel or steel and wood combined.
Our production programme includes gangways for various requirements.
|
|
This articulating finger pontoon comprises a galvanised steel/aluminium frame with a hardwood deck and is suppor ted on concrete floats. It has been developed specifically for locations with limited water level variation. The pontoon is available either for use with an end pile or as a cantilever from the quay wall.
The design has the following features:
- All welded Mild Steel or Aluminium structure
- The Steel structure is hot-dip galvanised to EN ISO 1461
- Proven record of Walcon fibre concrete protected expanded Polystyrene floats
- Hardwood decks and Fenders
- Articulated joints
|
|
Marinetek Mooring fingers are very strong, making them ideal for demanding applications.
The fingers have a high load-bearing capacity and are very stable. The standard versions are equipped with all-round PVC fenders and mooring points. The fingers are fitted to the pontoon by rubber bolt joints and adapters to match different frame materials and designs. The width of the timber deck is 0,7/0,75 m.
|
|
