... Beam, 20/74/180 degrees, 200/50/455/800 kHz, temp included plastic thru hull transducer Note: ION Series must also have the Sonar Module
... DualBeam, 20/60/180 degrees, 200/83/455/800 kHz, temp included for ION/ONIX Series Note: ION Series must also have the Sonar Module
Single/Dual beam use. 20/60 degree, 200/83kHz. Transducer dimensions: 5.25L x 2.75"W x 1.2"D (below hull); Shaft diameter: 0.86". Cable Length: 30 Feet. Fairing block not included.
Dual Beam, Down Imaging, HD Side Imaging, 200/83/455/800 kHz, temp included Note: ION Series must also have the Sonar Module
Dual/ High Definition Side Imaging, 20/60/86/55 Degree, 200/83/455/800 kHz with built in temperature. 30' cable. Transducer dimensions: 5.95"L X 3"W. Shaft diameter: 1.0" Fairing block included.
Description. - Through-hull Power supply: - 12/24 V (max 28 V) Output: - VSG40064 - Frequency 17.000 p/nm (4.8 Hz/nm) Output: - VSG40080 - NMEA0183 - NMEA2000 Output: - VSG40081 - NMEA0183
The DST800 Smart™ Sensor features embedded micro-electronics. Depth, speed, and temperature signals are processed inside the sensor and can be displayed on any radar, chartplotter, or ...
Everything you need to accurately measure depth, with all the precision and quality you would expect from B&G. For use with B&G systems. Available in Bronze or Plastic.
This sensor provides depth values in meters or feet depending on the system settings. An offset can be made to give depth below waterline or below the keel whichever is preferred. It ...
... location of the application transducers. On the Down & Side (DS) sensor, these point sideways and downwards. On the Down & Front (DF) sensor, these point forward and downwards. Both sensor ...
... you full control of the actions that take place at the bottom. Mounted on a bottom trawl, pelagic trawl or purse seine, this sensor will provide the important information when you need it!
... and fish that pass below your boat. The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearVü); an ...
Perfect for coastal and offshore fishermen who want traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp ...

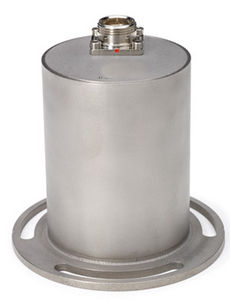

... are characterised by high quality, precision and accuracy. The frequencies cover from extreme shallow water to full ocean depth. Range of echo sounder transducers We offer a complete range of echo sounder transducers. ...
Measures the water depth. This 43mm transducer can be connected either direct to the Sea Data or to a WSI connection box. Depth can either be displayed as distance from the transducer, or adjusted to ...
Measures the water depth. This 52mm transducer can be connected either direct to the Sea Data or to a WSI connection box. Depth can either be displayed as distance from the transducer, or adjusted to ...
... urethane, in-hull Broadband transducer, ideal for smaller sportfishing and commercial vessels 8 m (25 ft) and up, fishing in depths of less than 900 m (3000 ft). Black 9 Pin connector.
The B258 is a bronze, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for use with our BSM-1 echosounder for fishing in shallow, medium and deep waters.
... Smart™ retractable Depth/Speed/Temperature Triducer, delivers precise digital depth, accurate speed and exact water temperature even at speeds above 40 knots - all with no programming or calibration necessary. ...
The P32 TRIDUCER® multisensor is our smallest, most-economical depth, speed, and temperature sensor. Although small in size, it is packed with many impressive features such as a releasable bracket. The ...
These TRIDUCER® multisensors feature depth, speed, and temperature in a single housing–drill only one hole in the boat! The 50/200 kHz, dual-frequency, single ceramic element provides good target detail in shallow water ...
Replaces discontinued and now out of stock B&G 401-00-011, B&G 610-0A-027, B&G 199-00-018 and B&G 610-0A-040
... 0183 serial data of depth and water temperature. Numerous models suit most applications requiring NMEA $SDDPT, $SDDBT and $SDMTW depth/temperature data. The DSP technology used by the CruzPro active ...
DEPTH Depth sensor up to 100 msw (10 barG), with sealed diaphragm and all wet parts in 17-4 PH stainless steel (FKM Elastomer-Standard seal material) high stability and low temperature ...
The depth transducer comes with a through hull fitting. An optional within hull installation kit is available and can be used on plastic hulls.
Three different speed sensors are available (all are retractable). A 10m (33 ft) cable is included with the sensor, with a water tight connector fitted just next to it.
How to choose this product
The depth transducer calculates the distance separating it from the seabed and sends the measurement to an electronic device with displays the results on a screen.
These sensors are essential elements of depth sounders, highly useful devices for sailing in shallow waters with rocky bottoms, channels with shifting sandbanks or in similar situations. They also can be used for finding fish or to determine the amount of chain to pay out based on the depth of the anchorage.
The transducer bounces ultrasound signals off the seabed at regular intervals and measures the return time of the echo. Made of bronze or plastic, the device can be part of a through-hull fitting, mounted to the hull's exterior or at the stern. Some operate on several frequencies, permitting analysis of seabed layering, while broad- or multi-beam units simultaneously examine a wide swath of the bottom, often at significant depth.
How to choose
Choice will depend on the instrument's make, connector type and functions, including dual or triple frequency and possible inclusion of a graphic readout. Mounting system is another factor. Through-hull fittings are not recommended for metal hulls, while a stern mount is most suitable for small power vessels.
