Rondal's carbon fibre hatches reflect the know-how accumulated over many years of hatch building in aluminium and stainless steel. The materials used are carbon fibre prepreg and PVC foam.
Hatches up to 1000 x 1000 mm are cured in an autoclave at maximum 120 °C and 3 bar pressure. Larger hatches are cured in a separate cabin under full vacuum.

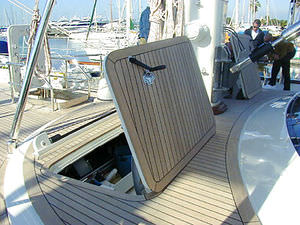

The mould set-up and the production method have been carefully chosen to ensure flexibility and high quality. As the gutter and moving part are made in one piece, almost any shape or size hatch can be built, deck camber incorporated or a (insulated) glass or perspex panel fitted. The hatch can be covered with teak or have a teak surround around the glass/perspex.
When decided to request price information please send a deckplan.
With this information we can inform you better.
|
|
Flush deck hatches in glass E (fibreglas under vacuum) or in carbon fibre.
A large range of standard sizes and possibility of custom sizes.It is possible to buy fittings for hatches such us hinges,dog locks etc.
Hatches suitable for decks in teak or in composite or aluminium.
Version with plexiglas or solid to be covered with teak or painted.
|
|
|
The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sailboats and the larger hatches can even be used as foredeck hatches. The hatch also features Lewmar's unique sealing system allowing easy acrylic replacement.
|
|
|
|
|
|
|

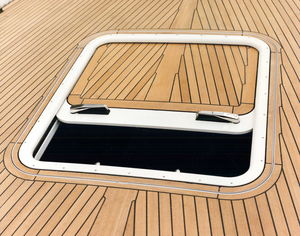

Currently, the opening systems fitted on boats (hatch), on leisure vehicle (roof light) and on buildings (sky dome) follow the same principle. A bearing structure (the lower frame) mounted on roof with a mobile part (the acrylic) which can be open or closed.
What is the problem?
The system is relatively efficient for letting air coming within and out of the space when the wind is well oriented. However, since the wind may be variable both in direction and force, a non-mobile roof light causes strong draught or the impossibility to extract air or smoke from the inside.
Systems usually sold everywhere are unable to cope with all situations.
Our solution.
In order to regulate the entrance and exit of the air, whatever the force and the direction of the wind, you need to be able to adjust the mobile part to the wind direction. You can choose to create draught or extracting the air.
Our solution enables e.g. to reduce the use of electric fans or air conditioning system whenever there is enough wind, thus saving energy. Similary, our product is capable of extracting smoke out of kitchens, attics or even in case of fire, an asset for increased safety and security. If you need to replace an existing hatch or roof light, we have designed a template allowing to mount our system on traditional rectangular openings.
|
|
With or without deck camber.
Hatch top
- Supplied with an aluminium plate top with optional possibility of teak covering (maximum 8 mm thick)
- Supplied with a perspex panel
- Supplied with a toughened glass panel
Hatch drive
- Manual
- Electric
When decided to request price information please send a deckplan.
With this information we can inform you better.
|
|
Incorporating the individual deck camber, Rondal's hinged hatches can be made in almost any shape. Choose between an aluminium top, a perspex panel, glass or an insulated glass panel.
Hatch top
- Supplied with an aluminium plate top with the possibility of covering the hatch with teak in the required thickness.
- Supplied with a perspex panel, with or without allowance for a teak border.
- Supplied with a glass panel, with or without allowance for a teak border.
Hatch drive
- Stainless steel gas spring assisted opening
- Electrically opening
Options
- Locking mechanism to be opened either from the outside, or from the inside, or both
- Separate dog lock securing device available for insertion in the dog lock to hinder unlawful entry
- Special locking gas spring to lock the hatch in any required position
- Dog locks available in aluminium or stainless steel
When decided to request price information please send a deckplan.
With this information we can inform you better.
|
|
|
Built tough for performance and reliability, the Maxwell offshort hatch series comes complete with silver anodised extruded aluminium frames. Heavy duty friction hinges hold the hatch open from 0° to 200° for maximum accessibility. A 15 mm (19/32") deep internal flange allows for a quick, professional installation. The smoke Grey 10mm acrylic lid is UV stabilised for long life. All fastenings and screws are manufactured out of 316 stainless steel. Closing handles are fitted with a simple, effective security locking system on the inside to lock the hatch closed or in a ventilation position.
|
|
|
|
|
|
|
Stainless steel hatches "INOX LINE" by Nemo Industries
Waterproof, endurance, functionality and elegance

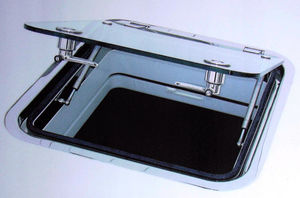

Made of austenitic stainless steel, with a slim-line aerodynamic profile, just 19 mm higher than the cover, Nemo hatches combine aesthetic elegance with practicality of use and excellent durability:
-The welding carried out with a TIG computerized system, degreased, pickled and passivated to guarantee shine and to protect the metal cover.
-Polishing carried out by a controlled-robot so that the crystalline structure remains unaltered.
-The seals made of closed-cell thermoplastic material, they guarantee waterproofing and endurance.

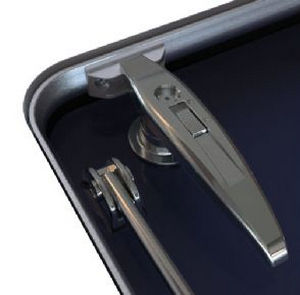

-The locking handles allow the hatch to be blocked even in an intermediary position to change air. They are fitted with safety catches on the inside (in AISI stainless steel 316L) to keep out unwanted visitors.
-Beside locking handles it is possible to ask for the optional visual alarm and the outside/inside lock with key
-It is possible also to have as optional ABS ivory colored internal frame, removable mosquito-nets and darkening panels, both done in ABS too.
Aluminum hatches by Nemo Industrie
-The best materials 30 micron anodised light aluminium alloy, 10 and 12 mm thick tough unbreakable Plexiglas, marine neoprene rubber, nylon reinforced with fiberglass, austenitic steel;
-Excellent solidity made possible by the strong aluminium frames, specially designed for high resistance to bending;
-Perfect waterproofing thanks to careful welding of all the frames and to a perfect matching of the fixed and mobile parts;
-A superlative finish all surfaces and corners are carefully smoothed and rounded off.
|
|
Features:
- 316L Stainless Steel lid.
- Extruded aluminum base.
- Spring arm allows hatch to open 180 degrees. Patent pending. (16 1/2" and larger hatches only.)
- Smoke acrylic lens.
- Patented locking tie down assembly.
- Inside/Outside opening option.
- Trim ring and screen available.
- CE approval available. Please specify when ordering.
|
|
|
Taylor Made Products has a wide selection of boat hatches and replacement accessories to fit most model boats since 1990.
|
|
True to Goïot tradition quality, the very new range of Opal hatches combine optimum watertightness, easy installation and aesthetism thanks to real technological breakthrough :
- one-piece aluminium lid with a thick frame section to provide optimum
rigidity,
- a new double contact seal system ensures perfect watertightness,
- slim lid height, 19 mm for a teak deck installation.
|
|
|
Hatch frame is constructed from heavy gauge extruded aluminum. Choice of diamond plate or smooth plate door is riveted to full-length hinge for maximum durability and performance. Size indicates cutout dimensions only, actual hatch size is slightly larger.
|
|

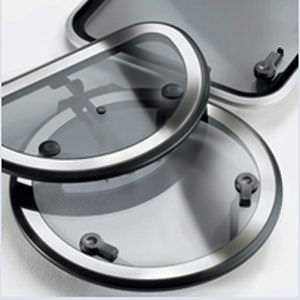

Rutgerson manufactures portlights for both motor and sailing boats. The flexible construction means that the portlights fit hulls from 8 mm (0.32") to 66 mm (2.6") thick.
The materials have been very carefully selected: special Swedish stainless steel,
silicone rubber seals of the very highest quality, sturdy and resilient acrylic glass.
This is why Rutgerson put safety first during the process of manufacturing portlights.
|
|
|
Today's sleekly designed and high performance boats require a hatch of equal style and quality. The smooth, rounded, low profile access and ventilation Ultra III Hatch meets the need to perfection. The easy-to-use security latch system ensures peace of mind, even when in the vent lock position. QuickCam (patent pending) support arms latch with minimal fingertip pressure, are impervious to vibration and can be adjusted to open to any position. Fully welded extruded aluminum cover and mainframe is 6063 alloy for superior strength. Polyester powder coating provides exceptional weather resistance. Fully tempered gray safety glass lens offers superior scratch resistance and clarity. Framed insect screens feature easy-to-operate latches. Wide choice of standard sizes as well as custom sizes. Application of custom logos available.
|
|
|
The High Seas hatch features a full welded wrought aluminum frame design, with Taylor Made® weather resistant polyester powder coating. Meeting the challenging rigors and elements that are associated with sailing and offshore cruising. A 3/8" thick acrylic lens provides strength, ensures privacy, yet allows plenty of light. Available in various colors. Easy-to-use security latch system provides peace of mind, even when in the vent lock position. High Seas positive locking support arms are impervious to vibration and can be adjusted to open to any position. Also available with aluminum or vacuum formed trim ring, with your selection of extruded frame or Velcro®-fastened ABS insect screen.
|
|
Anodized heavy-duty aluminum frames.
Vent position
Heavy-duty acrylic top.
Quick acting tie down dogs.
Sun shade available.
|
|
Hatches in stainless steel AISI 316L, with compasses for catch in opening position.
Standard size: 500 x 500 mm
Other size on request
|
|
Anodized heavy-duty aluminum frames.
Vent position
Heavy-duty acrylic top.
Quick acting tie down dogs.
Sun shade available.
|
|
Hatches in stainless steel AISI 316L, with compasses for catch in opening position.
Standard size: 500 x 500 mm
Other size on request
|
|
Covers for your hatches! (perhaps with your boat logo?)
Comfort through cool/darkened rooms
No fading for years!
|
|
| ... products without information |
| |
Using proven hydraulic technology, Bennett Hatch Lifter Systems raise hatches at the push of a button. The operation is quiet, smooth and responsive with no cylinder drift.
Retrofit Hatch Lifting Systems can be operated by the Trim Tab Hydraulic Power Unit. Kits are complete with all necessary hardware, tubing and fittings for simple Hatch Lifter installations. Independent Systems include the Trim Tab Hydraulic Power Unit. Independent Dual Acting Systems also available for applications that need a return "pull and hold" feature.
Hatch Lifter cylinder features:
- Single cylinder has about 250 lbs. of vertical lifting capability
- ¾-inch diameter stainless steel shaft, inside a black anodized aluminum cylinder
- Standard stroke is 18 inches with 12- and 24-inch strokes also available
- Dual cylinder systems can move simultaneously or independently
|
|
|
|
