SEEMATZ Floodlights are made of seawater resistant aluminium, white powder coated. Every screws are made of stainless steel. Wide beam reflector made of anodized aluminium and special hardened front pane. Sealings are made of temperature resistant silicone rubber. The front frame will be closed by two stainless steel spring locks - it makes the lamp change easy! SEEMATZ Flooflights are available in different voltages from 24VDC (200W Halogen) up to 230VAC. The high-power units have the compl. ignition units direct at the rear of the case - no extern power supply will be necessary! All units are conform to secure class 1, IP67, DIN/EN 60598 and 1000 hour salt-spary test ISO1456.
|
|
Applications : decks, holds, industrial areas, etc.
Housing : stainless steel seamless deep drawn, powder coated white
Lamps (not included) : HST/HIT lamp 70W
Mounting :adjustable bracket, stainless steel, 4 mounting holes, 2 x Ø 10 mm and 2 x Ø 14 mm
Diffuser : safety glass
Electric : 230V, flexible wiring, high temperature resistant
|
|
|
The portable luminaire is purposed for local illumination during cargo handling, assembling, maintenance works on vessels. Steel body, powder coating; protecting by a wire guard. Cable with plug. IP23, 4x60, 6x60W
|
|
Applications : decks, holds, industrial areas etc.
Approvals : according to the relevant classification societies, additional VDE and IEC
Housing : stainless steel seamless, deep drawn, powder coated white
Diffuser/Shade : safety glass
Mounting : adjustable bracket, stainless steel, 4 mounting holes, Ø 13 mm
Cable Entry : junction box, 1 cable gland brass, M24x1.5 with earthing insert
|
|

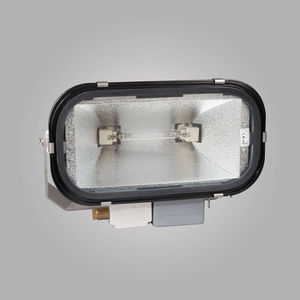

Floodlight for halogen lamps, max 1x1000W
Applications : decks, holds, industrial areas, etc.
Approvals : according to the rules of relevant classification societies, additional VDE and IEC
Housing : stainless steel seamless, deep drawn, powder coated white
Diffuser/Shade : safety glass
Mounting : adjustable bracket, stainless steel, 4 mounting holes, 2x Ø 10 mm and 2x Ø 14 mm
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C; 1.5 m connection
cable wired (H07RN-F3G, 3 x 1.5 mm2)
Cable entry
Brass cable gland M 24 x 1.5 MGCG
Lamp base
R 7 s
Light sources
(Not included)
Halogen lamp L 64.2 - 114.2 mm,
100 - 200 W, adjustable socket distance
(L 114.2 mm = standard)
Mounting
Adjustable bracket with central mounting
hole, dia. 14 mm
Floodlight for halogen lamps
Seamlessly drawn stainless steel
housing. Having no welding seams
or spots this type offers extremely
long lifetime.
Application
Yachts, fishing vessels, commercial
shipping and industrial areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
Halogen floodlight FLH is designed to achieve the highest level of durability and performance under extreme environmental conditions across a wide range of temperatures.
Housing, glass frame, mounting bracket and junction box in seawater resistant aluminium finished in white polyester coating.
Bolts and nuts of stainless steel.
Heat resistant silicone rubber gasket and hardened front glass.
Meet shock testing according to IEC 69-2-27 test Ea.
|
|
Protection class to EN 60 529: IP 56
Voltage: 24 V
Material: - Casing: brass/red brass
- Bracket: stainless steel
Lamp: Halogen incandescent lamps
- 2x50W/approx. 1.800lm
- 2x100W/approx. 4.000lm
(not included in delivery)
Equipment: - .../S = swivelling
- Heat insulating branching box
- Cable gland internal part: W10
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C, exterior connec-
tion box
Cable entry
Brass cable gland M 24 x 1.5 MGCG
Lamp base
E 27
Light sources
(Not included)
High pressure sodium lamps (HS)
Mounting
Adjustable bracket with 4 mounting
holes, dia. 11 / 14 mm
Small highly efficient floodlight
requiring no external ballast.
Application
Decks and holds, industrial and sport
areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
High pressure sodium floodlight FLS is designed to achieve the highest level of durability and performance under extreme environmental conditions across a wide range of temperatures.
Housing, glass frame, mounting bracket and junction box in seawater resistant aluminium finished in white polyester coating.
Bolts and nuts of stainless steel.
Heat resistant silicone rubber gasket and hardened front glass.
Meet shock testing according to IEC 69-2-27 test Ea. 115V on request.
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C; exterior connec-
tion box
Cable entry
Brass cable gland M 24 x 1.5 MGCG
Lamp base
R 7 s
Light sources
(Not included) Halogen lamp
L 114.2 mm, 200 W / 300 W /
500 W
Mounting
Adjustable bracket with 4 mounting
holes, dia. 11 / 14 mm
This floodlight is best where
there is instant light required. The
external junction box enables easy
connecting.
Application
Decks and holds, ramps, industrial and
sport areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C; exterior connec-
tion box with ignition unit
Cable entry
Brass cable gland M 24 x 1.5 MGCG
Lamp base
E 40
Light sources
(Not included) High pressure sodium
lamps (HS) / metal halide lamps (HI)
Mounting
Adjustable bracket with 4 mounting
holes, dia. 11 / 14 mm
Remark
Ballast unit has to be ordered separately
(see type no 1507, page 26 to 27)
Use authorized lamps only
High light output because of high
lamp efficiency.
Application
Decks and holds, industrial and sport
areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C, exterior con-
nection box with ignition unit, ballast is
incorporated
Cable entry
Brass cable gland M 24 x 1.5 MGCG
Lamp base
E 40
Light sources
(Not included)
High pressure sodium lamps (HS) /
metal halide lamps (HI)
Mounting
Remark
Two adjustable brackets with 2 moun-
ting holes each, dia. 14 mm
Use authorized lamps only
This is the solution where there is
no space left for a separate ballast.
Application
Decks and holds, industrial and sport
areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
- Floodlight for decks and holds, industrial and sport areas
- Integrated ballast
- Satisfy rules of maritime classification societies
Specifications:
- Floodlight for High Pressure Sodium (HS) or Metal Halide (HI) lamps with seamless housing of deep drawn stainless steel.
- The housing is powder coated white and enamelled up to 70-80 micrometer thickness. - The floodlight provides extreme corrosion resistance.
|
|
Voltage: 230 V
Material: Casing, glass-holding frame and bracket made of corrosion resistant cast aluminium
Colour: Black, RAL 9005
Lamp: High Pressure Sodium lamp 400W/approx. 48.000lm (not included in delivery)
Equipment: Built in ignition and ballast unit, max. 240V/50Hz
Variations: Ignition and ballast unit, max. 240V/60Hz
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C; exterior connec-
tion box
Cable entry
Brass cable gland M 24 x 1.5 MGCG
Lamp base
E 40
Light sources
(Not included) Halogen lamp
500 W / 1 000 W
Mounting
Adjustable bracket with 4 mounting
holes, dia. 11 / 14 mm
Remark
For 1 000 W use only lamps of following
manufacturers: BLV, Phillips, General
Electric
Vibration compatible type of
durable stainless steel.
Application
Decks and holds, industrial and sport
areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
Housing
Stainless steel deep drawn, seamless
Reflector
Highly polished aluminium, anodized
Finish
Powder coated white RAL 9016 and
enamelled up to 70 - 80 %u03BCm thickness
Pane
Safety glass
Electric
Flexible wiring, silicone insulated, heat
resistant up to 180° C; two exterior con-
nection boxes with one ignition unit
Cable entry
2 brass cable glands M 24 x 1.5 MGCG
Lamp base
E 40
Light sources
(Not included) High pressure sodium
lamps (HS) / metal halide lamps (HI)
Mounting
2 adjustable brackets with 2 mounting
holes each, dia. 14 mm
Remark
Ballast unit has to be ordered separately
(see type no 1507, page 26 to 27)
Use authorized lamps only One housing, double lighting
output.
Application
Decks and holds, industrial and sport
areas
Design
According to rules of maritime classifi-
cation societies, additional VDE and
IEC / EN
Protection Degree
IP 67
|
|
- Floodlight for decks and holds, industrial and sport areas
- Vibration compatible type of durable stainless steel
- Satisfy rules of maritime classification societies
|
|
- Floodlight for decks and holds, industrial and sport areas, illumination of water surfaces, fishing-nets, etc
- Extremely powerful and highly efficient narrow beam floodlight
- Satisfy rules of maritime classification societies
|
|
* For use in
o Zone 1 and Zone 2
o Zone 21 and Zone 22
* Lamp options
o halogen lamps (QT) up to 1000 W
o halogen metal halide lamps (HIT) up to 400 W
o sodium vapour high pressure lamps (HST) up to 600 W
* Housing in cast aluminium
* Mounting components in hot galvanized steel
* The floodlight can be adjusted in 15° or 30° increments
|
|
Voltage: 115 or 230 V
Material: - Casing: brass/red brass
- Bracket: stainless steel
Lamp: - Halogen incandescent lamps 1000W/approx. 22.000lm (not included in delivery)
- Other lamp wattages upon request
Equipment: - .../S = swivelling
- .../SM = with vibration damper bracket
- Heat insulating branching box
- Cable gland internal part: W10
|
|
* Floodlight lights for helideck landing area
* For use in hazardous areas
* Rugged and low profile floodlight in acid resistant stainless steel housing (SS316L)
* Simple to install and maintain
* IP rating
* Resistant to vibrations
* Long lamp life
|
|
|
Casing, glass holding frame, latches and brackets made of stainless steel, powder-coated (RAL9018). Hard glas pane, resistant against temperature changes. With lampholder R7s and 1m connection cable 3x2sqmm wired.
|
|
Halogen Floodlight , maximum 200W
Tranberg floodlights are designed to meet rough environmental
conditions on ships and offshore installations. It is the policy
of Tranberg to provide products with the highest standard in
quality and performance
|
|
|
Casing, glass-holding frame, latches and bracket made out of stainless steel, powdercoated (RAL 9018) casing. Hard glass pane, resistant against temperature changes. With branching box. With lampholder R7s. For halogen-lamp up to 500W, length ca.118mm
|
|
Tranberg floodlights are designed to meet rough environmental
conditions on ships and offshore installations. It is the policy
of Tranberg to provide products with the highest standard in
quality and performance
|
|
|
Casing, glass holding frame, latches and brackets made of stainless steel, powder-coated (RAL9018). Hard glas pane, resistant against temperature changes. With build on ignition- and ballast unit 230V, 50Hz. With branching box and lampholder E40
|
|
|
Casing, glass holding frame, latches and brackets made of stainless steel, powder-coated (RAL9018). Hard glas pane, resistant against temperature changes. With branching box. With lampholder R7s
|
|
|
Casing, glass holding frame, latches and brackets made of stainless steel, powder-coated (RAL9018). Hard glas pane, resistant against temperature changes. Branching box with 2x ignitor 230V, 50/60Hz. With 2 lampholder E40
|
|
Halogen Floodlight , maximum 1000W
Tranberg floodlights are designed to meet rough environmental
conditions on ships and offshore installations. It is the policy
of Tranberg to provide products with the highest standard in
quality and performance
|
|
|
|
