10.50 m
34' 5"
|
|
|
|
|
|
13.15 m
43' 2"
|
|
|
Specifications :
- Length over all : 13,15m (40 ft)
- Hull length : 10,94m (36 ft)
- Beam : 3,87m (12,70 ft)
- Bridge Clearance : 2,95m (9.68 ft)
- Draft : 1,15m (3.77 ft)
- Displacement : 10,9t
Construction
Sea category: CE B / 6 People
Hard handmade laid moulded fibreglass, hull, deck, deckhouse, radar arch
Polyurethane core sandwiched for deck cabin
Epoxy barrier finish on the hull
Inside planking in teak varnished in satin style
Varnished teak & holly cabin sole
Anodised aluminium window casement with safety glass and screen
Port lights in moulded SS with screen
Long keel
2 or 4 Full length cored FRP Longitudinal galvanised iron girders in the hull bottom with local transverse floors
All exterior stainless steel fittings polished SS 316
Custom intake/exhaust system with intake vent on hull side CE norm
Mechanical
Engines: Volvo, Yanmar, Perkins, Cummins
Double steering position with complete engine control & instrumentation
Hydraulic steering
Fiberglas muffler & waterlock
4 Blade/bronze propeller
1 or 2 Stainless steel rudder
Stainless steel shaft with PSS drip less shaft seal
2 x 310lt Stainless steel water tank with meter as gauge
Fresh water pump
2 x 795lt Black iron fuel tank painted & coated with polyester resin, 2 visual gauge, hand hole clean out ports
Fuel management system including by-pass valves with 1 Fuel/water separator per engine
110lt Holding tank with electric gauge, hand hole clean out ports and with deck side or overboard macerator pump-out
45lt Water heater calorifier & 220V
3 Automatic bilge pumps
|
|
|
|
13.65 m
44' 9"
|
|
|

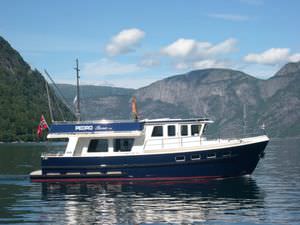

The Drifter Trawler is much more than just a beautiful enrichment to the extensive Aquanaut fleet. It is, in every respect something exceptional and as regards its appearance, it can only be described as a "ship"! The Trawler can attribute this apt description to a totally professional and robust "maritime feel" and everyone will want to be able to call themselves its "captain".
The design of the Drifter Trawler is based on the well tried AK series. The fully updated styling of the hull, side decks and superstructure give the Trawler its instantly recognisable look.
|
|
| ... products without information |
| |
|
|
9.10 m
29' 10"
|
|
|
|
|
|
13.10 m
43' 0"
|
|
|
|
|
|
