The Willdo Jet Thrusters are driven hydraulically (not electrically) by the propulsion engine. A hydraulic pump, which is fitted onto the propulsion engine, drives an hydraulic motor, located in the pump housing, which in turn activates a water pump, that sucks in the water through an opening in the bottom of the boat and presses it wih great force, via hoses with an inside diameter of no more than 45mm, to the nozzles in the sides of the boat.
Each WillDo electrically driven Jet Thruster consists of a unidirectional DC motor (standard equipped with a thermal protector!), driving a centrifugal impeller. As this impeller is immersed in water it starts to prime the surface water and build up the pressure. The water flows through the flexible hoses via the diverter valves to the outlet openings, which have a diameter of ø32mm (up to 50kgf) or ø46 for the bigger units. These openings must be positioned into either bow or stern (Single) or in both (Combi). The water intake (available in stainless steel 316 or aluminium) has a diameter of 90mm and is equipped with a grid to prevent larger objects from getting into the system. Smaller debris that floats in the water and can pass through the grid, will not cause any damage to pump and valve.
|
|
EXTURN 180
external bow / stern thruster 1,8 kW, 12V
recommended boat size : 8 - 11 m (26 - 36 ft.)
|
|
EXTURN 300
external bow / stern thruster 3,0 kW, 24V
recommended boat size : 12 - 15 m (39 - 49 ft.)
|
|
EXTURN 230
external bow / stern thruster 2,3 kW, 24V
recommended boat size : 10 - 13 m (33 - 43 ft.)
|
|
EXTURN 130
external bow / stern thruster 1,3 kW, 12V
recommended boat size : 7 - 9 m (23 - 30 ft.)
|
|
Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor yachts and deep footed sailing yachts from 17’-85’.
Designed for performance and durability, Max Power electric tunnel thrusters offer many unique features:
• Corrosion free composite drive legs
• Drive legs pre-filled with oil and sealed for life for zero maintenance
• Case hardened spiro-conical gears
• Line shields to protect oil seals from fishing lines and fouling
• High efficiency, purpose built DC motors
• Solid copper contact for guaranteed safe, high power connections
• Purpose built high specification DC contactors
• Electronic control boxes offering unique and unrivaled safety features
|
|
|
The WillDo MINI Jet Thruster, available in a 20 or 30 kgf version, is an entirely new and ingenious development by WillDo. It is a so-called two-way system which does not have a seperate inlet like the other models, but only two small openings. Simultaneously, one of the openings functions as the suction end and the other opening as the pressure end, where the thrust force is generated and, of course vice versa when you need to manoeuvre into the opposite direction. This procedure is made possible by the specially designed WillDo floating nozzles, to provide enough water supply. The bidirectional electric motor drives the vane pump which has been especially developed by us.
|
|
|
|
|
|
|
Max Power's new range of Ignition Protected tunnel thrusters is available for models CT35 to CT125. Certified ISO 8846, this range allows the safe use of an electric tunnel thruster in petrol / gas engine vessels where there may be potentially flammable gases.
IP thrusters can also be installed in habitually wet or damp areas such as sail lockers, or in the transom of deep "V" shaped motor yachts.
Designed for performance & durability, Max Power Ignition Protected thrusters offer many unique features:
•Ignition Protected, water resistant and easy to connect.
•Corrosion free composite drive legs
•Drive legs pre-filled with oil and sealed for life for zero maintenance
•Case hardened spiro-conical gears
•Line shields to protect oil seals from fishing lines and fouling
•High efficiency, purpose built DC motors
•Solid copper contact for guaranteed safe, high power connections
•Purpose built high specification DC contactors
•Electronic control boxes offering unique and unrivaled safety features
|
|
Outboard mounted and inboard thru-hull mounted azimuth style Hydraulic Thrusters are a very cost effective addition or ugrade to your existing platform or vessel. These units are quick mounted, heavy duty hydraulic thrusters, available with many options including 360 degree continuous steering, Electronic display indication for positioning and propeller rpms, hydraulic tilt, hydraulic raise/lower, hard-wired Remote Control, Wireless Radio Remote control and more.
Our outboaed mounted Thrusters are designed to install quickly and connect to your existing engine and hydraulic Supply. They can be operated independently or linked together for simultaneous control. The lower drives are available from 50 - 500hp, with 22 - 32" propellers and matched stainless Steel Nozzles.
These units are heavy duty and are built to withstand the harshest conditions.
Frames, lower drives and structural components have a 5 year workmanship warranty.
|
|
Max Power’s hydraulic tunnel thrusters are ideal for commercial and heavy displacement / high windage vessels from 40’-85’. Designed for long-term performance, these models are robust, include corrosion free components, and offer the following unique features:
•Corrosion free composite drive legs (except for the CT325 – bronze drive leg)
•Drive legs pre-filled with oil and sealed for life for zero maintenance
•Case hardened spiro-conical gears
•Line shields to protect oil seals from fishing lines and fouling
•The use of a highly reputed brand of hydraulic motors to ensure durability and serviceability
•Electronic control boxes offering unique and unrivaled safety features
|
|
CMC's range of bow thrusters all feature dual contra-rotating propellers and are suitable for a wide range of uses. They can be fitted to vessels with steel, aluminum or composite hulls.
The use of dual contra-rotating propellers provides at least 30% more thrust from the same power and diameter of a single propeller unit.
|
|
This Vertically retractable thruster is ideal for sailing yachts between 45 - 70' since it keeps your hull lines clean and smooth. Its lightweight construction and ideal emersion depths means the unit can be installed far forward in the hull making it much more effective than a tunnel thruster.
Max Power's patented thrust plate transfers its lateral thrust through the hull of the yacht not from a cumbersome column.
|
|
BTQ 140 - Single propeller.
Single propeller made in sturdy composite material.
- Recommended boat length from 6-9 m (20-29 ft).
- Solenoids protection carter in sturdy composite material .
- Gearbox in bronze.
- Zinc anode independent from the gearbox and hence easy replaceable.
- Equipped with elastic coupling.
|
|
|
|
|
|
|
Launched in 2004, the Compact Retract™ is designed for yachts from 30-52'. This lightweight electric retractable thruster, the first of its kind, has been a major success with shipyards from the start. Whilst other electric retractable thrusters on the market may appear to be the same, technically they are very different.
The Max Power Compact Retract™ is the lowest profile electric retractable thruster available, allowing installation in even the most confined spaces. It also boasts the smallest hull opening on the market thanks to its unique downward movement. Furthermore, unlike some competing models, the Compact Retract™ is bolted onto a flange and not directly laminated into the hull. This means that the whole unit can be removed quickly and easily.
Other advantages also include: lightweight composite construction, rapid deployment, no exposed moving parts in the yacht, splash resistant in the yacht (thanks to its GRP casing), and intelligent position detection.
If considering an electric retractable thruster for your yacht, the Max Power Compact Retract™ is the only choice for complete peace of mind.
|
|
EXTURN 400
external Duplex bow / stern thruster 4,0 kW, 12V
recommended boat size: 14 - 18 m (46 - 59 ft.)
EXTURN 600
external Duplex bow / stern thruster 6,0 kW, 24V
recommended boat size: 17 - 20 m (56 - 66 ft.)
|
|
2 Contra rotating propellers.
Recommended boat length from 19-30 m (65-99 ft) .
Solenoids protection carter in sturdy composite material .
Gearbox in bronze .
Zinc anode independent from the gearbox and hence easy replaceable .
Equipped with elastic coupling .
|
|
TRAC Thrusters deliver more thrust per horsepower than any other thruster available. TRAC's twin counter-rotating propellers are more efficient and can reach higher horsepower than single prop thrusters.
TRAC hydraulic thrusters are fitted with high efficiency piston motors. 8" thru 12" thrusters are available in a DC version and all TRAC thrusters are available in AC versions.
Thruster control is available in single or proportional speed. TRAC proportional thruster control enables precise maneuvering control.
|
|

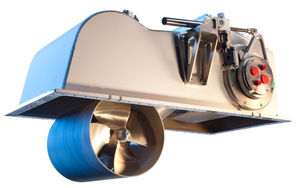

This folding retractable thruster is designed to be compact, in order to fit under bunks and floorboards on yachts 50-200'.
The retractable movement allows it to be installed far forward in the box of the boat while reaching ideal emersion depth.
Benefitting from the patented folding arm it has a small hull opening ensuring that it never breaches the hull of the yacht. Designed for maximum buoyancy, the unit can be installed on either sailing yachts or fast motor yachts.
|
|

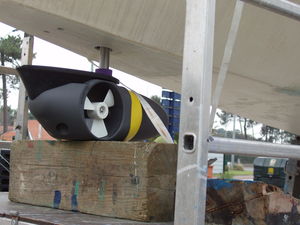

The stern thrust installation, developed and produced by ALMAR, is being mounted underneath the bathing plattform at least 80 mm below the water-line on the outside onto the flat of the stern. The mounting is very easy as only a drilling on the hull of 60 mm in diameter is necessary in order to guarantee the power supply. For mounting, 4 screws are provided on both ends. In the driving range the aggregate itself is encapsulated completely waterproof. The complete unit is plastic-laminated and after the installation coated with antifouling. The propeller shaft is sealed twice by special shaft seals. Caused by the special construction of the water in- and outlet area a high efficiency is achieved.
- easy mounting is possible at any spot of the ship's rear,no disturbingparts at the inside of the ship
- only space necessary for cable installation
- perfect for after cabin
|
|
|
A propeller transforms engine power into thrust, which in turn, overcomes the boat’s resistance and move it in the required direction, fully in accordance with the laws of nature. But now, when we introduce a complete range of the patented swing bow and stern thruster designed and developed in Sweden – the Swing Thruster – it’s time to think again. With the RMC Swing Thruster, you get 30-50% greater efficiency, low sound level and minimal cavitation. And last but not least, it does not require a tunnel through the hull, which reduces boat speed.
|
|
DETAILS
The SS 230 is made specifically for boating vessels up to 30 feet in length.
- 12" Wide X 30" Long
- 12 Volt DC, 300 Amps, Single Prop
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available for both bow and stern).
- Installation manual.
- Computerized test results.
|
|
DETAILS
The SS 380 is made specifically for boating vessels up to 80 feet in length.
- 25" Wide X 30" Long
- 24 Volt DC, 750 Amps, 4 Props.
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available for both bow and stern).
- Installation manual.
- Computerized test results.
|
|
DETAILS
The SS 340 is made specifically for boating vessels up to 40 feet in length.
- 24" Wide X 30" Long
- 12 Volt DC, 550 Amps, Dual Prop
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available or both bow and stern).
- Installation manual.
- Computerized test results.
|
|
DETAILS
The SS 350 is made specifically for boating vessels up to 50 feet in length.
- 24" Wide X 30" Long
- 24 Volt DC, 400 Amps, Dual Prop
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available or both bow and stern).
- Installation manual.
- Computerized test results.
|
|
SCHOTTEL Transverse Thrusters (STT) are built on the basis of the tried-and-tested underwater gearboxes of our Rudderpropellers. We supply standard Transverse Thrusters with FP or CP propellers rated at up to 1400 kW.
SCHOTTEL offers optimized solutions even for special applications in which extremely low noise generation is required.
|
|
DETAILS
The ST 350 is made specifically for boating vessels up to 50 feet in length.
- 24" Wide X 10" Long
- 24 Volt DC, 400 Amps, Dual Prop
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available for both bow and stern).
- Installation manual.
- Computerized test results.
|
|
DETAILS
The ST 340 is made specifically for boating vessels up to 40 feet in length.
- 24" Wide X 10" Long
- 12 Volt DC, 550 Amps, Dual Prop
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available for both bow and stern).
- Installation manual.
- Computerized test results.
|
|
DETAILS
The ST 380 is made specifically for boating vessels up to 80 feet in length.
- 25" Wide X 10" Long
- 24 Volt DC, 750 Amps, 4 Props
ALSO INCLUDED
- Harness that runs from the thruster to the motor controller.
- Mounting hardware.
- Compression terminals.
- Joy stick (dual joystick available for both bow and stern).
- Installation manual.
- Computerized test results.
|
|
|
|
