Features:
- Mounted on Rugged Motorized Base with Horizontal and Vertical Clutch Assemblies
- Anti-Condensation Heater in Base
- Anti-Icing Heater Circuitry (Optional)
- Single Joystick or Multiple Station Control
- Indoor and Outdoor Weatherproof Control Stations
- Beam Speed is 12 degrees per second with immediate Electric Braking on Target
- Remote Electric Beam-Size Focus (Option for 15-inch only)
|
|

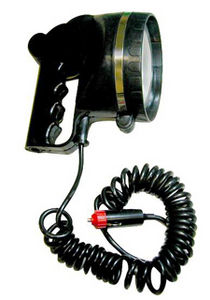

aqua signal BREMEN - watertight portable searchlight with morse facility. Two mounting brackets available as extra application inside and outside.
Voltage:
12 V, 24 V
Housing:
rubber black, shock resistant, non-corrosive, non-magnetic
Protection:
IP 68
Electric:
Switch on/off, cable 3 m/10’ 2 x 0.75 mm²
Authorisation:
CE
|
|
- Dual lamp design provides redundancy, reliability-works when you need it
- Bright, powerful halogen beam with 3° h x 5° w beam spread
- Easy-to-install Point Pad™-style joystick control
- Robust, function-and feature-rich searchlight is easy to install
- 7-wire wiring harness, 17' length
- Electronics located in water-resistant light head, instead of traditional light base location, for protection from water accumulation
- 45° down pitch ocular design provides enhanced visibility when docking
- 18° up pitch to illuminate draw bridge towers, etc.
- Lamps easily replaced by removing top cap to access rear light assembly
- Desiccated filter dries air; protects reflector and light assembly
- Innovative "direct drive" system eliminates uncontrolled light movement in choppy conditions
- Heavy-duty gear teeth and electric motors
|
|
- Constructed of noncorrosive materials.
- Sealed beam halogen lamp.
- Long life gear drive.
- Low amp draw.
- Patented clutch mechanism prevents motor damage when running against limit stops.
- Remote Control and 15' cable included.
|
|
Features:
- Constructed of noncorrosive materials.
- Sealed beam halogen lamp.
- Long life gear drive.
- Low amp draw.
- Patented clutch mechanism prevents motor damage when running against limit stops.
- Remote Control and 15' cable included.
|
|
- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
- Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
- Rugged triple-primed and sealed, marine grade aluminum housing
- XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- Wiring harness included
|
|
- Chrome Plated Brass Head
- 4-1/2 Inch Sealed Beam Bulb Included
|
|
Application
For the marine industry
Materials
- Housing, chromatted seawater resistant aluminium
- All other materials corrosion resistant and non-magnetic
|
|
Application:
For the marine industry
Materials:
- Housing, chromatted seawater resistant aluminium
- All other materials corrosion resistant and non-magnetic
- Finish: UV-resistant powder coating, white RAL 9016
Optics:
- Hardened front glass
- Parabolic mirror Ø 260 mm with adjustable focus
|
|
HID Floodlamp - More light, greater safety, less power consumption, longer life and proven reliability in tough working conditions.
Hella marine HID floodlights use the new D2S Xenon bulb that provides up to 5 times the service life of traditional bulbs. Due to Hella's advanced 'Free Form' reflector technology, the HID deck floodlight has a light output 2.5 times greater than halogen floodlights. Available with integrated or remote ballast.
Halogen Floodlamp - Fibre reinforced housing and Free form reflector for close range homogeneous illumination.
We have an extensive range of floodlights. Available in Pendant, Upright or Flush Mount. We also have twin beam versions in some models.
Cable entrance through rubber grommet or sealed cable entry gland*.
316 Stainless Steel mounting hardware.
Available with 12V /55W or 24V / 70W bulbs.
|
|
LED Floodlights - Ultra reliable LED floodlights featuring ultra low power consumption (only 7W), suitable for applications subject to high vibration. This floodlight is completely sealed and pre-wired with 2m of marine cable and is the ideal 'fit and forget' unit.
UV and impact resistant plastic front housing. Die cast aluminium body. Clear glass lens. Completely sealed.
Multivolt 9-30V DC.
|
|
|
This light can be surface mounted in areas needing low level lighting and for general lighting on smaller boats. The screwed bezel is machined stainless steel 316 L and available with a clear or frosted glass lens. This light uses the best quality materials and is designed for longevity and tested for water tightness to IP65. The DV12 is available with a MR11 lamp option as well as LED's with single and uniquely multi colour options. One colour can give mood lighting while the other more functional. It is available in cool white, warm white, red, blue as well as red/white and blue/white in 12 and 24 volt.
|
|
aqua signal KIEL - Floodlights in high-quality plastic
Voltage:
12 V, 24 V
Housing:
black or white, shock resistant, non-corrosive, non-magnetic, seawater resistant
Electric:
Cable max. dia. 7 mm / 0.28’’
Authorisation:
CE
|
|
aqua signal ISLAND – effective
Voltage:
12 V, 24 V, 230 V
Housing:
Stainlees steel, powder coated white, non-corrosive, non-magnetic, seawater resistant
Diffuser:
Clear safety glass
Protection:
IP 67
Electric:
Cable entry brass M18 x 1,5 MGCG, 1,5 m cable
Authorisation:
CE
|
|
|
Lumitec’s recently designed Cockpit Flood Light offers the same great light output as it predecessors with a stylish new appearance. Utilizing Lumitec’s proprietary light engine technology, it is a perfect replacement for 55W Halogens. The luminaire’s small size (70% smaller than comparable lights) and low power (80% less current draw than a 55W Halogen) have made it an ideal selection for many exterior locations. Completely sealed and IP 67 compliant, expected output life is more than 22,000 hours. Powder coated die cast aluminum housing is salt-spray tested to 3,000 hrs. 10 to 30VDC, draws 900mA @ 12VDC.
|
|
|
Lumitec's LED Cockpit Flood Light is a perfect replacement for dated, power hungry 55W Halogens. The company's proprietary light engine technology provides a wide even beam, without the hotspots or banding that cause eye fatigue. The smaller size (70% smaller than comparable lights) and lower draw (80% less power than a 55W Halogen) have made it a favorite among top-tier boat builders. The luminaire is completely sealed, IP 67 compliant and boasts an expected life of more than 30,000 hours. 10 to 30VDC, draws 900mA @ 12VDC.
|
|
|
Lumitec’s new Maxillume flood light will change the way you think of LED illumination. Boasting the light output equivalent of a 200 to 300 Watt Halogen light, the light has already been selected by the US Government for installation in their coastal interdiction vessels. The solid aluminum housing is completely sealed and IP67 compliant. Best of all, the luminaire operates on 12 or 24V DC systems so there is no need to run the generator.
|
|
|
This light can be surface mounted in areas needing low level lighting for steps, walkways, doorways and for general lighting on smaller boats. The bolted bezel is machined stainless steel 316 L and ensures a strong exterior for exposed areas. It is available with a frosted lens. This light uses the best quality materials and is designed for longevity and tested for water tightness to IP65. DV26 is available in 12 volt LED cool white, warm white and blue.
|
|
|
The Flush Mount LED Cockpit Flood Light is a follow up to Lumitec%u2019s highly successful bracket mount LED flood light. Utilizing Lumitec%u2019s proprietary light engine technology, it is a perfect replacement for 55W Halogens. The luminaire%u2019s small size (70% smaller than comparable lights) and low power (80% less current draw than a 55W Halogen) have made it a favorite among top-tier boat builders. Completely sealed and IP 67 compliant, expected output life is more than 22,000 hours. Its powder coated die cast aluminum housing is salt-spray tested to 3,000 hrs. 10 to 30VDC, draws 900mA @ 12V.
|
|
PAR 30
The PAR 30 floodlight can be surface or flush mounted. The flush requires an insert which is welded into the superstructure. The bolted stainless steel bezel can house 4mm or 15mm thick glass. The 15mm glass is recommeneded for areas exposed to heavy weather. The PAR 30 can also be supplied with a screwed bezel type is recommended for deck head downlighting.
Application: Decks and masts
Bulbs: Metal Halide 70 or 150 watt and Halogen 100watt
Reflectors: Multiple choice with beams of 8, 24 and 45 degree angles
Power Supply: Metal Halide – 120/230 Volt AC
Halogen – 12/24 Volt DC or 120/230 Volt AC (transformer)
Lens: Available in 4mm or 15mm toughened glass
Bezel Material: Polished stainless steel
|
|
|
In addition to our highly popular conventional halogen deck lamps, we now offer a flush mount version. Ideally suited for fibreglass hardtop installations, it allows for a very clean and finished installation. Free Form lens reflector technology guarantees maximum output. Lamp is completely waterproof and constructed of impact resistant UV stable plastic. Comes complete with 12v 55w halogen H3 bulb. Also suitable for 24v 70w bulbs.
|
|
- Bracket, surface, tower and flush mounting
- 45º
- x 20º
- flood beam pattern
- 3" x 5" Bulb
- Internal weather-proof wire splicing - no connectors required
- Vertical and horizontal head adjustment
|
|
Oval Low/High Level Adjustable Flood Lights
This oval low or high level lights with twin flood lamp can be installed almost anyway except exposed areas or below the ‘maindeck’. This versatile light could also be used as a down light.
Application: Decks, overheads and bulwark lights
Bulbs: Two MR11 20 watt halogen lamps. Maximum total 40 watts or 3 x 8.5 watt lamps
Power Supply: 12/24 Volts and 120 or 230 Volts is available with and external transformer
Bezel Material: Polished Stainless steel
Lens: Clear or frosted glass
|
|
MR 16 Adjustable Downlights
This exterior adjustable downlight has been installed on many yachts and is designed for exterior use.
Application: Exterior overheads
Lens: Clear or frosted
Type of bulb: M16 Halogen lamp. Maximum 50 watts
Power Supply: 12/24 Volt or 120/230 Volt with an external transformer
Bezel Material: Polished stainless steel
|
|
MR16 Low and High Level Flood Lights (S3025B and S3052S)
This particular light is available with two different depths of glass. The light with the 4mm thick glass bezel is suitable for fitting into exterior deck heads and superstructure not exposed to heavy weather. For areas exposed to heavy weather, the light is fitted with a 15mm glass bezel. Installation requires an insert, available in both aluminium and stainless steel, so the lights is flush.
Application: Decks, steps and masts
Types of Bulb: Halogen, MR16 50 watt maximum.
Power Supply: 12/24 or 120/230v which requires a transformer
Insert Material: Aluminium or stainless steel
Bezel Option: Bolted or screwed
Lens: Clear or frosted, 4mm or 15mm thick available
|
|
MR11 and MR16 Surface Mounted Lights
The exterior MR11 and MR16 deck lights are surface mounted and have been tested to IP65. The lights are available in two different sizes with a screwed or bulkhead fitting. Both lights are manufactured in a polished stainless steel and can be installed in most places which need direct lighting.
Application: Decks, bulkheads and overheads
Bulbs: Halogen low voltage
Power Supply: 12/24 volts. MR 16 35 watt maximum and MR11 20 watt maximum
Casing Material: Polished Stainless steel
Lens: Clear
|
|
|
|
