Installed and ready to use in 30 minutes!

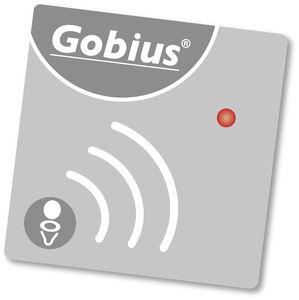

Gobius is the first level indicator in the world that measures from the outside. Installing Gobius to your tank is very easy. Instead of the traditional way of installation, i.e taking the tank apart and drilling holes, you simply attach the sensors to the tank on the outside.
All Gobius products measure from the outside
Very easy to install and setup
Suitable for all tank materials; stainless steel/steel, aluminum, plastic and fibre glass
Gobius can be retro-fitted to any shape or size of a tank
Analouge output for gauges from Wema, VDO, Faria, Teleflex, Phillipi…
Supports NMEA 2000
Extremely low electricity consumption, less than 40 mA (12 Volts)
Support 12 – 24 Volts
30 minutes to install
On the sensor there is a disc of tape that is provided to attach the sensor directly onto the surface of your tank. The panel may be placed in the washroom. All necessary cables and plugs needed to connect the sensors and the panel with the control unit are included.
Very easy to calibrate
No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds.
The Gobius technology (patented)
Each sensor that is placed onto the tank wall consists of a shaker and an accelerator. When the shaker creates a vibration in the tank wall, the accelerator measures the size of the vibration and passes the data on to the control unit.
Art No 970497
|
|
|
|
|
|
|
Installed and ready to use in 30 minutes!
Gobius is the first level indicator in the world that measures from the outside. Installing Gobius to your tank is very easy. Instead of the traditional way of installation, i.e taking the tank apart and drilling holes, you simply attach the sensors to the tank on the outside.
All Gobius products measure from the outside
Very easy to install and setup
Suitable for all tank materials; stainless steel/steel, aluminum, plastic and fibre glass
Gobius can be retro-fitted to any shape or size of a tank
Analouge output for gauges from Wema, VDO, Faria, Teleflex, Phillipi…
Supports NMEA 2000
Extremely low electricity consumption, less than 40 mA (12 Volts)
Support 12 – 24 Volts
30 minutes to install
On the sensor there is a disc of tape that is provided to attach the sensor directly onto the surface of your tank. The panel may be placed in the washroom. All necessary cables and plugs needed to connect the sensors and the panel with the control unit are included.
Very easy to calibrate
No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds.
The Gobius technology (patented)
Each sensor that is placed onto the tank wall consists of a shaker and an accelerator. When the shaker creates a vibration in the tank wall, the accelerator measures the size of the vibration and passes the data on to the control unit.
Art No 970459
|
|
SeeLeveL 707, multi tank monitor system for plastic tanks
This level gauge has an easy to read LED display. Display fresh, gray, or black tank levels at the press of a button. 9 segmented display gives accuracy to 1/8 (12.5%) of a tank. Orange and red indicators are used for low and empty level warnings for the fresh water tank. Orange and red indicators are used for high and full level warnings for the gray and black water tanks. 3 sender boards are included.
Art No 970206
|
|
SeeLeveL 709, multi tank monitor system
This system provides an outstanding balance between low cost and full features. Instead of single points that give you only a close appr. of how full your tanks are this system offers a continuous level and shows an actual number, in percent of full.
Measures tanks up to 300 mm tall with a single sender or 600 mm tall with dual senders. 3 sender boards are included.
Art No 970213
|
|
SeeLeveL 713, multi tank monitor system
No buttons to push! The level of each tank, plus the outside temperature, is shown individually. 713 provides accurate tank level information in percentage of full. Measures tanks up to 430 mm tall with a single sender or 840 mm tall with dual senders. 3 sender boards are included.
Art No 970220
|
|
Full control from one central location on your boat.
Visual indication of tank level, seacock position & pump status.
Turn holding tank macerator pump on manually & off manually or automatically.
Turn water maker on/off manually or automatically.
All tanks are name selectable giving tank type. e.g. (Grey Tank 1) (Black Tank 1) (Fresh Tank 1)
(Fresh Tank 2).
Two display modes available (see right).
Displays in Litres or Gallons and Percentage.
Backlight.
|
|
In addition to accuracy and reliability the TD 4000 comes standard with many intelligent features to measure up to four tanks, four batteries, or a combination of both.
The Smartswitch TD 4000 tank sensor is suitable for diesel, petrol, grey, freshwater and black tanks.
It is suitable for all tank construction materials including stainless steel, plastic and fibreglass.
Simple to install, the TD 4000 comes with two setup options depending on regular or odd tank shape.
Two point calibration for regular shaped tanks (low and full) and five point calibration for odd shaped tanks.
|
|
|
LED gauge for Bob's Machine Shop hydraulic jack plates. LEDs have a photovoltaic cell so they adjust for to be bright in day time and dim during night. Reads height of jack plate in 1/4 inch increments. Available in White, Black and soon chrome.
|
|
The ST70 Plus instrument display is designed primarily for sail and powerboats over 12m (40') and is the perfect partner for Raymarine multifunction display systems. The large, high visibility, 164mm (6.5") LCDs are ideal for installations where information is viewed at a distance, perhaps mounted on the mast or on a large bridge, or you simply want to view information in a larger format at close range at the navigation station or helm.
Like the smaller ST70 instrument display, ST70 Plus is fully customisable, allowing you to view information when you want it and where you want it, be it in digital or analogue format, full screen or in user defined windows selected from any of 17 configurations.
The button-less displays are operated by dedicated keypads - there's a push-button only pilot keypad for sailboats, a rotary pilot for powerboats and a combination push button and rotary instrument keypad for complete control of all instrument features.
|
|
|
A variety of Tohatsu gauges are available through your local dealer; hour meters, speedometers, tilt/trim gauges, Analog and LCD tachometers and even multi-function LCD gauges. All manufactured to Tohatsu's precision standards. See your dealer for a complete list of all Tohatsu gauges available for your outboard.
|
|
Continuously monitors 3 levels of holding and water tanks and monitors battery level. Includes rocker switch for pump if needed. Suitable for tanks up to 26" tall. Optional grey water tank sensor available.
- Easy to Install
The Smart Sense System is attached to the outside of the tank as shown.
- Reliable
No micro float switches or probes to degrade and fail. Electronic sensors are outside the tank
- Attractive and User Friendly
Smart Sense System includes a display panel with LED lights and hidden mounting screws inside snap out mounting bezel.
|
|
|
|
|
|
|
SENDER LEVEL WITH ALARM 4-20 MA. SIZE 10 TO 100 CM
Codice prodotto: HP--G00XX4-20
INTERNATIONAL PATENT.
Our new capacitive level sensor provides measurement accuracy, reliability and quality. It was designed to respond to the request of a sensor accurate, durable, universal and easy to use. The following features will reflect the advantages:
- The capacitive level sensor is compatible with all 4-20 mA gauges on the market. It is not compatible with STD (240/33 Ohm) and VDO type (10/280 ohms) gauges.
- It can be connected, properly powered, to the gauge replacing any other existing 4-20 mA sensor, with no special precautions needed.
- It is equipped with an exit alarm that may be audible or visible, and is programmed to 20% (for %u2018empty%u2019 alarm) or 80% (for %u2018full%u2019 alarm).
Capacitive level sensors can be used for FUEL, WATER and WASTE WATERS.
The capacitive sensor is currently produced with lengths ranging from 10cm to 100cm.
The %u2018Reed%u2019 level sensor is universal and therefore can be used for all liquids (white waters, black waters, fuel). The capacitive sensor instead exploits the properties of the liquid the level of which is to be measured and therefore has a structure created on purpose for the liquid of interest. In particular, we produce two types of capacitive level sensors, one concerning the fuel sector and one concerning the white waters and black waters%u2019 sector (for measuring the water level the sensor is then the same but has two different types of alarms %u2013 %u2018empty%u2019 for white waters or %u2018full%u2019 for black waters).
|
|
|
Three features combined into one sophisticated control — the popular Bennett rocker switch control, trim tab indicator and the Auto Tab Retractor. Water resistant, highly accurate and features variable intensity LEDs for night or day. Features a relay module mounted near the transom, which simplifies installation by reducing the number of wires to run to the helm.
|
|
Awareness of the rudder angle is an important safety factor. This is especially true while moving in and out of your berth, drawing alongside another boat, picking up a skier, mooring, or any other "close call" situation. Davis' Rudder Position Indicator gives instant visual reference of rudder angle.
The pointer swings a full thirty degrees with each revolution of the wheel. Mounts directly to your hub (approximately 2" (5 cm) in diameter) with a self-adhesive pad . Rugged, hermetically sealed, weatherproof, and sunproof housing ensures long life. No cables, adjustments, or electricity required; gravity power makes it simple and service-free. Suitable for boats with mechanical and single station hydraulic steering systems.
|
|
Codice prodotto: HPYXXXXX/HPWXXXXX
Our liquid level senders are level indicating devices compatible with all the petrol and water level gauges available on the market.
They are fuel, sea-water and acid resistant because they are made of the highest stainless steel AISI 316. They are perfectly watertight and have a flange with holes that allows a perfect fitting on the tank.
The sender cables must be connected to the measuring terminals of the indicating instruments, as explained in the user's manuals of the later.
The level indicating gauges available on the market can be divided into two main categories:
1) standard gauges (STD)
2) inverted gauges (VDO-type)
|
|
|
You can now monitor and control up to 8 tanks of any shape or construction. You can see how much is in each tank, pump out each tank, automatically start a watermaker when water levels are low, and automatically turn off watermakers whaen tanks are full. You can be alarmed when fuel is low, deactivate toilets when black tanks are full. The very Smart TC-8000 Controller provides an intelligent networked solution for the monitoring and control of up to eight tanks. The system consists of the TC-8000 display controller (as seen above) up to eight HT-100 or HT-100/P tank controllers to control each tank, and any number of optional RD-800 repeater displays communicating via a 2-wire network cable with a maximum cable length of 1000 meters. This means you can have the main display at the helm and another display in the bedroom or second helm station. Control the fuel, water, grey and black tanks so you never run out of water or fuel again.
|
|
|
|
|
|
|
CAPACITIVE SENDER
Codice prodotto: HPCHDS/ HPCHDV / HPCHG /
INTERNATIONAL PATENT.
Our new capacitive level sender offers precision of measurement, reliability and quality that are
always sought after and appreciated by the end-users. They were designed to meet the demand
for a precise, durable, universal and user-friendly sending unit. The following characteristics
reflect its major features and advantages:
- Capacitive level sender is compatible with the majority of the measuring gauges present in the market (Osculati, Aqua Meter, Vetus, Gaffrig, VDO, Faria) and can be programmed to work with any other non-standard gauge.
- It has only two connecting cables as if it were a regular resistive sender. This feature makes its installation extremely easy because no additional cables have to be provided.
- Our patented electronic system allows the sender to feed autonomously.
- It can be connected to the gauge in place of any existing sender without any special adjustments. Thus the are no costs associated with switching to this type of sender from any other current model.
Capacitive level senders can be used for FUEL, WATER AND WASTEWATER. The sender of each
category in its turn can be either generic or dedicated.
|
|
|
The Depth instrument gives an easy to read display, of the true depth in metres or feet. The logarithmic scales show shallower sections more clearly: NX2 Depth 0-600 ft
|
|
Features:
- Tank level monitoring for up to 3 tanks
- 14 selectable legends for tank descriptions eg. Fuel, Water, Blackwater
- Hi - Low tank level alarms for 3 tanks
- Tank levels displayed in graphic or percentage format
- Units displayed in litres, imperial gallons or US gallons
- Audible alarm with mute function
- Power supply 10-35VDC
- Display is backlit for easy night time viewing
The 600-TLMN tank level monitor will interface directly with a precalibrated BEP Ultasonic Tank Sender. (Part No. TS1) If fitting an uncalibrated TS1, the sender can be calibrated via the 600-TLMN monitor.
|
|
EchoPilot's Windmaster takes a radical approach has been taken with both the design of the display and the masthead sensor.
An extremely high contrast dot matrix display offers a range of possible screens. Apparent and true wind readings are available on each of the wind displays (true wind is only available if a log transducer is connected). Three GPS repeater screens are included as a bonus (including Echopilot%u2019s famous pseudo-compass steering aid to a waypoint for sailboats), allowing a GPS to be connected as well as the wind sensor if an NMEA combiner is used.
The ultrasonic masthead unit has no moving parts and is easily installed on any mast. Two pairs of ultrasonic crystals give both wind speed and direction in NMEA 0183. Errors common on wind vane sensors due to heel and gyroscopic effects (precessing) are virtually eliminated.
|
|
Features:
- Digital and analogue readings
- True wind speed 1
- Apparent wind speed
- Boat speed (over ground or water) 1
- Target boat speed. PC required 2
- True wind angle 1
- Apparent wind angle
- Geographical wind direction 2
- Trip distance 1
|
|
The 600 - DCTLM is designed for installations where space is not available to fit two meters. Offering most of the same functions and settings as the 600-DCM and 600-TLM.
- A compact and economical installation.
- A full range of selectable legends for battery banks and tanks is available in the set-up menu.
- Selectable legends allow full information to be shown on the screen.
- LCD screen draws 70% less than equivalent LED screens.
|
|
|
Fireboy®-Xintex® has designed a line of liquid level gauges that are built to the quality standards of all our equipment. Senders are available for either threaded or flanged top-of-tank installation. Choose either one-tank or two-tank monitors with appropriate threaded or flanged senders. Order online or call our factory at 1-866-350-9500 for Assistance and Technical Information. Not interchangeable with the WTG System Series, which are three-wire connections. (These items have two-wire hook-ups.)
|
|
The Simrad IS20 Combi System include the all in one DST800 active SimNet transducer, making it ideal as a stand alone Depth, Speed, Temp display for sail or power boats, or as part of a larger integrated Simrad IS20 mulitfunction system.
Four preconfi gured data pages – providing a combination of easy to read Depth, Temperature, Speed and Trip Log data.
|
|
|
A variety of Tohatsu gauges are available through your local dealer; hour meters, speedometers, tilt/trim gauges, Analog and LCD tachometers and even multi-function LCD gauges. All manufactured to Tohatsu's precision standards. See your dealer for a complete list of all Tohatsu gauges available for your outboard.
|
|
- Perimeter lighted black dial with bold graphics. Black aluminum bezel.
- Flat glass lens.
- Internally illuminated. 12 VDC, negative ground.
|
|
|
Raytheon Anschütz provides all components for ship specific rudder angle indicator systems in a modular design. A rudder angle indicator system consists of a feedback unit, a rudder angle amplifier and rudder angle indicators. This includes indicators with different dimensions, different scales, three-face rudder angle indicators and special indicators to meet Panama regulations. All indicators can be dimmed and are available with different protection grades.
|
|
|
The steer pilot is a highly innovative instrument that has proven its value out on the racecourse many times since it was first introduced as part of the NX2 system in 2005. Put in simple terms, this invaluable instrument continuously displays to the helmsman the direction in which he should be steering in order to reach a given point in the fastest and most efficient way. It does this by combining data from the compass, speed transducer and GPS and when required analyses it against a boat's technical specification, most commonly the polars, to determine the best route. When the helmsman deviates from that route the needle instantly moves away from the centre line, indicating in the clearest way possible the direction and extent of that deviation.
|
|
Product Details:
The 600-TG offers economical monitoring for fresh or grey water tanks (plastic or fibreglass only). Using 600-TGSK strategically mounted well nuts will give 4 tank levels. Supplied with one sender kit. Second sender ordered separately.
Also available is the RV-TS Tank sender. Only one hole is required for installation, the sender is sealed via external lock nuts. Only suits tanks with maximum depth of 280mm.
|
|
|
Windicators Three high performance indicators designed for extreme sensitivity at all angles of inclination in even the lightest winds. Constructed from highest quality marine materials such as Duralumin, Stainless steel and UV stabilised Delrin for long life and durability. They are packed separately in attractive retail packaging and include specially designed mounting bracket to suit top mast or lateral attachment. Two larger sizes are fitted with reflectors for night time sailing.
|
|
|
|
