No. 44 is an altimeter with integrated compass and with a full weatherstation, air pressure reading, barchart for pressure changes and weather forecast with symbols. In addition the instruments shows an altitude profile and allows to store the maximum/minimum heights as well as total ascendings. The device incorporates a clock with stop watch function. Case plastic, 60x75 mm, Display 35 mm, weight 45 gr.
|
|
|
BARIGIO Compass No.12 stands out by an exclusive design created by one of germany´s most famous designers, Christian v. Boetticher. A bearing mark in combination with a mirror built into the top cover gives orientation under all conditions. An exclusive gift item in a solid metal csae. Case 48 x 15 x 65mm, Weight 125g, Resolution of scale 5°, with thong.
|
|
A bracket mounted compass with multiple mounting capabilities, including surface mounting. Illumination and built-in compensators as standard.
|
|
Offshore® 135 compass
Designed for power boats.
• Compass card : Graduated every 5°, apparent Ø 130 mm. Heading numerals every 30°.
• Hood / sunshade : Unique articulated protective hood : built-in sliding cover, composed of 3 telescopic parts.
• Mounting : Comes as standard in a flushmount version. Can be bracket-mounted with the addition of optional bracket.
• Resistance to vibrations and hull pounding : Magnetic cell mounted on shock absorbers.
• 1 lubber line.
• Compensation supplied as standard.
• Lighting : On flat card : 2 bulbs, 12 Vdc*. On conical card : 1 bulb, 12 Vdc.
|
|
Powerboats from 6 to 12 m (19 to 40 ft)
Card
Outstanding legibility under all weather and light conditions for optimum comfort and accurate readings.
• Perfect stability of conical or flat card, 81 mm apparent diameter.
• Every card is balanced individually in our workshops.
• Graduation every 5°.
Lubber line
Orange, for instant recognition.
Vibration Absorber
Optimum vibration-resistance for a perfect stability of the card. "Vibration Absorber" exclusive system : minimal contact between the pivot and the sapphire cup.
Watertight construction
•One-piece moulded flange and bowl.
•Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.
• Moulded-in sunken head screws.
Materials
• All parts fully UV-ray treated.
• Scratch resistant dome.
|
|
Constellation® compasses have earned the title of The World’s Most Trusted® Compasses.
They are used worldwide for larger pleasure boats, ocean racing powerboats and sailboats, commercial vessels, fishing fleets and by the U.S. Navy and Coast Guard.
The Constellation® compass features an internal gimbal ring that allows full tilt and heel, a virtually indestructible jewel and hardened alloy pivot and a unique concave distant reading card that lets you read it from longer distances and at lower angles of sight. Dual reading cards are also available on 4-1/2" (114mm)models.
Available in flush and binnacle mounting styles, for power or sail, these prestigious compasses provide uncompromising quality and performance for the most discerning yachtsmen.
|
|
- 3" (80 mm) apparent diameter dial
- front reading dial
- bracket, flush and binnacle mount choice
- internal gimbal system
- LED illumination
- built-in compensators
- single box packaging
- All Pisa series compasses meet the D.M. 388 29/09/1999 art. 3, paragraph 2.
|
|
SkipperTMII compasses have exclusive guaranteed no-spin GlobalBalance® front reading cards with 5° graduations for stable readings at high speeds or in rough weather.
Full 30° card tilt angle. Other features include large illuminated 2-5/8" (67mm) Lexan® dome and high visibility bright yellow or red lubber line. All SkipperTM II models have an expansion diaphragm, cross-bar compensating system, and night illumination (No. A4569-50-6R light kit optional on A80 models).
|
|
Mini-B tactical compass
Binnacle mounted, the casing is secured with 3 stainless steel screws ; no drilling in the deck is required, only 3 holes for the screws. The compass can be easily removed with one single twist, for quick storage and security.
- 4-colour sectored card.
- Apparent diameter of the card : 90 mm.
- 3 lubber lines.
- Card pivot mounted on a shock absorber.
- Complies with ISO 613.
|
|
Surface Mount Compass
SkipperTMII compasses have exclusive guaranteed no-spin GlobalBalance® front reading cards with 5° graduations for stable readings at high speeds or in rough weather.
|
|
|
Corsair® IV compasses offer you a choice of traditional flat card or exclusive NO-SPIN GlobalBalance® front-read and dual-read card models.
|
|
|
The Nexus NX2 analogue Compass repeater and compass heading displays have superb readability. A sensitive pointer on the 360° scale gives an accurate and stable compass heading.
|
|
|
|
|
|
|
Clipper Compass System

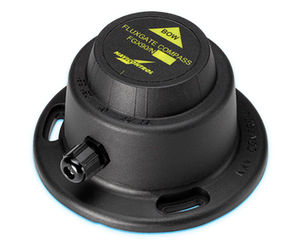

The Clipper Compass is a fully electronic compass with remote fluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading. The sensor which is gimballed for plus/minus 45 degrees of pitch and roll, is mounted in a position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.
Steer to course function
When the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished. The steering sensitivity can be preset by the user. An off course alarm provides a safety feature when not at the helm. If the heading deviates by more than a preset amount then the alarm will sound.
Technical Specifications
- Supply voltage Nominal 12v DC
- Consumption, 120mA+ (25mA for display illumination max)
- Fluxgate accuracy /- 1 degree
- Adjustable Damping
- 1 degree display resolution
- Display case size 110 x 110mm
- Depth behind panel 30mm
- Fluxgate 175mm diameter x 95mm
- sensor supplied with 5 metres of cable
- Extension cables available
|
|
|
With the New NX2 Compass Data display, view up to 4 individual data references at one time. The NX2 Compass data may display the heading graphcially, using DigalogueTM technology, with a 360° scale or as a steer indication.
|
|
|
The Azimuth 1000 combines a digital fluxgate compass and an LCD display into one compact, watertight unit. Ideal for all types of powerboats, the Azimuth 1000's large, heads-up display provides easy-to-read heading, compass rose, and off-course steering information. And with its standard NMEA 0183 output, you can send its precise heading data to other onboard equipment. No matter how fast your speed or how rough the seas, Azimuth 1000 keeps you steady on course!
|
|
- Heading
- Steer memory
- External trim button
- Steer BTW 1
- Steer CTS 1
- Steer wind 1
- Boat speed 2
- Course and distance made good 2
- Trip distance 2
- Battery voltage
- Total distance 2
- Off-course Alarm
|
|
Simrad GC80 Gyrocompass
The unique technology in the Simrad GC80 Gyrocompass eliminates the need for annual service.
The all new Sirmad GC80 Gyrocompass is fully IMO approved for standard and High Speed Craft (Simrad GC85 Gyrocompass) and can be configured in a dual gyrocompass system. The highest possible accuracy and stability is provided from new technology, by sophisticated and fully sealed sensitive element.
|
|
|
The KVH GyroTrac is the economical gyro system that fits as easily on your vessel as it does in your budget. GyroTrac combines two leading-edge concepts: the digital magnetic compass pioneered by KVH and a unique, three-axis gyro sensor. This unparalleled combination offers the drift-free precision and versatility of digital compass technology with the accuracy of gyro-stabilization, all for less than 25 percent of the cost of traditional gyros. And with the system's fully configurable data outputs, you can provide stabilized heading data to virtually all other onboard equipment. With GyroTrac, staying on course has never been easier!
|
|
- 4 1/2" PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals
- Easily Installed, Fits 4.75" (12.07 cm) Mounting Hole. Click here to view a template of the mounting hole (NOTE: Be sure you print the template actual size).
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
|
|
All Saturn® compasses feature an adjustable hood, compensators, and night illumination. Saturn® Bulkhead mount compasses feature an exclusive retractable light bar and 30° inclinometer. Saturn® compasses are the perfect choice for sailboat installation!
Front cover included.
|
|
|
This compact sized bulkhead mount compass can be mounted at any angle from vertical down to 30°.
|
|
|
Full 30° card tilt angle. Other features include large illuminated 2-5/8" (67mm) Lexan® dome and high visibility bright yellow or red lubber line. All SkipperTM II models have an expansion diaphragm, cross-bar compensating system, and night illumination (No. A4569-50-6R light kit optional on A80 models).
|
|
|
C399D models feature traditional top viewing and edge reading for low angle viewing.
|
|
- Choice of 2 or 5 Degree Markings
- Large 6" Dial Diameter
- Easily Installed, Fits 7 1/4" (18.42 cm) Mounting Hole. Click here to view a template of the mounting hole (NOTE: Be sure you print the template full size).
- PowerDamp Performance Dials
- 90 degree Lubber Lines for Easy Reading
- Full Internal Gimbals
- 12 Volt Green NiteVu Lighting
- Optional Night Lighting Available in 24 or 32 Volts
- Spherical Design with Fiberglass Reinforced Bowl
- High-Capacity Roller Diaphragm for Extended Temperature Operating Ranges
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
|
|
- 2 3/4" Easy to Read Direct Reading Dial
- Viewing is adjustable to 30 degrees
- Adjustable and Removable with Bracket and Thumbscrews
- Internal Green Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
|
|
- 2 3/4" Easy to Read Direct Reading Dial
- Viewing is adjustable to 30 degrees
- Adjustable and Removable with Bracket and Thumbscrews
- Internal Green Night Illumination
( Built-in Compensators to Easily Adjust for Deviation
( Easily Installed, Fits 3" (7.62 cm) Mounting Hole. Click here to view a template of the mounting hole (NOTE: Be sure you print the template actual size).
|
|
- 3 3/4" PowerDamp Dial
- Special Reinforced Bracket with Quadrantal Correctors
- Hardened Steel Pivot and Sapphire Jewel Movement
- 45 Degree Lubber Lines
- Full Internal Gimbals
- Exclusive Built-in Green NiteVu Lighting
- Built-in Standard Compensators and Booster Magnets on Base
- Movable Sun Shield
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
|
|
The Solid State Heading Sensor%u2122 (SSHS%u2122) is a Solid State Rate/Gyro Compass that uses innovative electromagnetic technology for highly accurate, stable readouts of your ship%u2019s heading.
Solid State Heading Sensor incorporates solid-state accelerometers and a solid-state angular rate sensor for indicating the vessel%u2019s attitude and rate of turn.
The Solid State Heading Sensor detects terrestrial magnetism and produces compass data that can be utilized in NMEA0183 and NMEA 2000® formats. Typical applications include radar echo trail, autopilots, digital chart plotters, sounder devices and more.
Using the Solid State Heading Sensor can significantly improve the stability of your radar/chart overlay, target acquisition, calculation of target-tracking data, and your autopilot performance.
Contained within a rugged, compact case that protects against harsh marine environments, the Solid State Heading Sensor is designed to be virtually maintenance free and easy to install!
|
|
Corsair® IV compasses offer you a choice of traditional flat card or exclusive NO-SPIN GlobalBalance® front-read and dual-read card models.
Available in flush, binnacle or bracket mounting styles, for power or sail, these attractive 3-3/4" (95mm) compasses sport a unique telescoping hood which protects the compass when not in use.
Corsair® IV compasses are available in Hi-Speed® powerboat models for planing hulls and are fully gimbaled for sailboat installations. Navy red L.E.D. night illumination and built-in compensators are standard.
|
|
CruiserTM compasses are available with a front-reading, 3-3/8" (86mm) apparent diameter NOSPIN GlobalBalance card or a front or flat reading card.
Designed for cruising class boats in the 18 to 30 foot range, all Cruiser compasses have crystalclear spherical domes, cross-bar compensators, and red night illumination.
|
|
|
|
