We are very pleased to introduce to you the little "sister" of the SPADE: It is called SWORD.
Its spoon shape confers an exceptional holding .
Its ratio "Holding surface area /weight " is highest of all currently existing
anchors.
The advanced fixing of the shank gives it, in spite of the absence of ballast, a distribution of the weight on the tip (pledge of a good penetration) among the heaviest.
The shape of its shank enables it to adapt itself to all bow rollers.. to self release itself and retrive automatically with the windlass and always to position itself in the best position for a very fast setting.
And much of other excellent characteristiques...
And although its holding is very high, its price is very sveet..
|
|
|
|
|
|
|
The new XYZ Soft Mud Boat Anchor is especially designed for soft mud and watery/slippery sea bottoms. This boat anchor is a product of years of research and development. The firs generation of the XYZ Boat Anchor won the Practical Sailor's 2006 Soft Mud Anchor test.
Most of the soft bottoms have mixed density and slippery texture, which makes them difficult to set an anchor in. In order to hold in soft bottoms the anchor must have ultra large fluke surface and wide front tip. Very steep angle of penetration is an imperative. The anchor must be capable of ultra short scope (2:1) and ability to rotate itself in a correct position and hold correct orientation during movement in any direction.
It is known that not one anchor is perfect for all anchoring bottom. Cruising boatmen, rarely knowing what is on the seabed of the anchorages they may visit, should always carry more then one type of anchors. All soft mud bottoms offer greatly reduced holding power. When general-purpose anchor is used some bottoms offer as little as just 10% of the holding available in firmer bottoms! Setting and orientation of the boat anchor in those bottoms is often unpredictable. It should be understood that an anchor designed for a specific purpose (soft mud) might not perform well (hard bottoms) under different circumstances.
The new XYZ Soft Mud Boat Anchor could be assembled in matter of minutes and when disassembled it takes very little space.
The only real anchor test is to compare the holding power of different anchors, of the same weight, on the same bottom. We at XYZ, strongly encourage testing and comparing XYZ anchors with another popular anchors
|
|
|
|
|
|
|
LEADING INNOVATION IN BOAT ANCHOR DESIGN
The XYZ Extreme Boat Anchor® is used by US Navy for special and the most demanding applications. XYZ boat anchor is the choice of Oceaneering International global offshore oil provider with a focus on deepwater applications that also serves the US defense and NASA agencies. By ELIMINATING OBSOLETE ELEMENTS such as ROLL BAR, HEAVY, LONG SHANK and HEAVY FRONT BALLAST, the Extreme is engineered to enhance the most fundamental features: ultra large, heavy and sharp FLUKE SURFACE and ULTRA SHORT AND STRONG SHANK. These innovations enable almost 80% of the boat anchor's weight to be in the fluke surface - the only anchor part that produces holding power!
The design features force the XYZ anchor to set almost instantly in demanding anchoring bottoms - EXTREMELY DEEP for ultimate holding power, and HOLD regardless of angle of pull. Once set, even under the most adverse conditions, the Extreme boat anchor will NOT BREAKOUT. IT WILL HOLD! The holding power exceeds the strength of the rode and most other hardware. Cutting Edge Science - the Cutting-Edge Saw Blade enables cutting through hard to penetrate bottoms: slippery weeds, corals*, small rocks etc.
The 5th XYZ boat anchor generation, the Extreme boat anchor, is being built upon an already proven superior product that was RATED #1 in the major 2006-08 USA independent anchor tests. The XYZ boat anchor has shown far superior holding power and related 360° performance of any anchor known to this date.
|
|
Stainless Steel 17-4PH Cutting Blade
The Cutting-Edge of the new XYZ Extreme Boat Anchor enables penetration through hard bottoms such as slippery weeds, corals, small rocks etc. The blade is made of corrosion resistant 17-4PH precipitation-hardened stainless steel. 17-4PH is used by NASA and in the aerospace industry. Very high yield strength (up to 1100-1300 Mpa 160-190 ksi) can be achieved.
XYZ Anchor has no roll-bar that collects debris, grass and rocks or can choke the fluke. XYZ design eliminates heavy front ballast and large/heavy bendable shank.
|
|
|
|
|
|
|
The new XYZ Soft Mud Boat Anchor is especially designed for soft mud and watery/slippery sea bottoms. This boat anchor is a product of years of research and development. The firs generation of the XYZ Boat Anchor won the Practical Sailor's 2006 Soft Mud Anchor test.
Most of the soft bottoms have mixed density and slippery texture, which makes them difficult to set an anchor in. In order to hold in soft bottoms the anchor must have ultra large fluke surface and wide front tip. Very steep angle of penetration is an imperative. The anchor must be capable of ultra short scope (2:1) and ability to rotate itself in a correct position and hold correct orientation during movement in any direction.
It is known that not one anchor is perfect for all anchoring bottom. Cruising boatmen, rarely knowing what is on the seabed of the anchorages they may visit, should always carry more then one type of anchors. All soft mud bottoms offer greatly reduced holding power. When general-purpose anchor is used some bottoms offer as little as just 10% of the holding available in firmer bottoms! Setting and orientation of the boat anchor in those bottoms is often unpredictable. It should be understood that an anchor designed for a specific purpose (soft mud) might not perform well (hard bottoms) under different circumstances.
The new XYZ Soft Mud Boat Anchor could be assembled in matter of minutes and when disassembled it takes very little space.
The only real anchor test is to compare the holding power of different anchors, of the same weight, on the same bottom. We at XYZ, strongly encourage testing and comparing XYZ anchors with another popular anchors
|
|
|
|
|
|
|
SPADE anchors are manufactured in 3 materials (Steel, Aluminium, Stainless Steel), and in 6 sizes.
Plough shaped anchors are designed to plough sea floors. SPADE anchors by name, and by action, dig deeply into the sea floor. Once they are within the sea floor, the concave shape of SPADE anchors compact the sea floor, and thus not to move! This design is unique.
The remarkable efficiency of a SPADE anchor is due to the size, and shape, of its effective surface : SPADE anchors of the same surface area will have the same holding power, no matter the material they are made of. All models meet the seven safety criteria :
1. The anchor digs in rapidly, regardless of the type of sea bottom.
2. The anchor buries itself deeply within the bottom.
3. Once set, the anchor gives the maximum holding power without dragging.
4. If the traction force exceeds the bottom holding characteristics, the anchor offers constant, and maximum, resistance to dragging - even if it moves under extreme load.
5. The anchor keeps on holding, regardless of the shift in direction of either the wind or the current.
6. The anchor design doesn't allow the anchor rode to become snagged by the anchor.
7. The anchor is built strongly enough to withstand very high loads.
|
|
|
|
|
|
|
SPADE anchors are manufactured in 3 materials (Steel, Aluminium, Stainless Steel), and in 6 sizes.
Plough shaped anchors are designed to plough sea floors. SPADE anchors by name, and by action, dig deeply into the sea floor. Once they are within the sea floor, the concave shape of SPADE anchors compact the sea floor, and thus not to move! This design is unique.
The remarkable efficiency of a SPADE anchor is due to the size, and shape, of its effective surface : SPADE anchors of the same surface area will have the same holding power, no matter the material they are made of. All models meet the seven safety criteria :
1. The anchor digs in rapidly, regardless of the type of sea bottom.
2. The anchor buries itself deeply within the bottom.
3. Once set, the anchor gives the maximum holding power without dragging.
4. If the traction force exceeds the bottom holding characteristics, the anchor offers constant, and maximum, resistance to dragging - even if it moves under extreme load.
5. The anchor keeps on holding, regardless of the shift in direction of either the wind or the current.
6. The anchor design doesn't allow the anchor rode to become snagged by the anchor.
7. The anchor is built strongly enough to withstand very high loads.
|
|
|
LALIZAS has designed the Professional Sea Anchor (Drogue) especially for use on large boats and under harsh conditions. The fabric is polyester 200D coated on both sides with 0,45mm PVC. Lalizas Professional Sea Anchors are immensely strong using 40mm, UV resistant, webbing terminating on a 6mm x 60mm INOX connecting ring. LALIZAS drogues are supplied in a safety yellow colour, packaged in a handy, tough stowage bag and available in a choice of three sizes.
|
|
|
|
|
|
|
SPADE anchors are manufactured in 3 materials (Steel, Aluminium, Stainless Steel), and in 6 sizes.
Plough shaped anchors are designed to plough sea floors. SPADE anchors by name, and by action, dig deeply into the sea floor. Once they are within the sea floor, the concave shape of SPADE anchors compact the sea floor, and thus not to move! This design is unique.
The remarkable efficiency of a SPADE anchor is due to the size, and shape, of its effective surface : SPADE anchors of the same surface area will have the same holding power, no matter the material they are made of. All models meet the seven safety criteria :
1. The anchor digs in rapidly, regardless of the type of sea bottom.
2. The anchor buries itself deeply within the bottom.
3. Once set, the anchor gives the maximum holding power without dragging.
4. If the traction force exceeds the bottom holding characteristics, the anchor offers constant, and maximum, resistance to dragging - even if it moves under extreme load.
5. The anchor keeps on holding, regardless of the shift in direction of either the wind or the current.
6. The anchor design doesn't allow the anchor rode to become snagged by the anchor.
7. The anchor is built strongly enough to withstand very high loads.
|
|
|
|
|
|
|
The Brake is classified as one of the modern fixed type plough anchors. The characteristics of this anchor is to have big shares strongly formed in 3 planes with inverted edges and a shank long enough to be able to fit the majority of rollers.
The 16 kg model we tested proved to be more than enough for our boat even though. According to the legislation, it requires a higher standard model.
On the first type of seabed (sand and mud) we obtained a constant holding to 800 kg. It started to drag very smoothly from 3000 kg.
On the hard sand, the holding without skidding was 1000 kg with peaks at 1500 kg. Beyond that point, it drags without pulling.
Advantages : Exceptional holding in both types of seabed. The values obtained are equivalent to a medium wind of 42 knots on boats from 10,50 m to 12,50 m. In peak conditions, the 300 kg is equivalent to the higher wind of 60 knots.
The particar shape of the shank makes the pulling out easier when lifting the anchor to the surface vertically.
- Exist in 8, 12, 16, 20, 24 , 34 kg, 40 , 100 kg
|
|
Kobra 1 with folding shank.
Cleverly designed to be stored on the bow roller or stowed in the chain locker thanks to its collapsible shank.
Its high holding power makes it ideally suitable for use as a picnic anchor, used in conjunction with a weighted mooring line. This reduces the effort necessary in the absence of windlass.
Kobra 2 with fixed shank.
For winterizing, unbolt the shank before folding it. It will ease the stowage of the anchor in its compartment. Before using the anchor again, relock the shank in position with a well gripped new nylock nut.
|
|
Navy anchors combine weight with flukes to dig in and hold firmly in sand and mud. The reverse action of the shank allows quick retrieval of a fouled anchor. High-quality gray iron casting, available with aluminum-painted or black PVC-coated finish.
|
|
The performance of the CQR™ anchor is now legendary. The original drop-forged construction of the CQR™ anchor increases its strength and reliability under load which is why genuine CQR™ anchors do not break. The hinged shank delivers consistent setting and holding even in the very worst conditions, whatever the changes in wind and current. The CQR™ anchor has Lloyd's Register Approval as a High Holding Power anchor. All CQR™ anchors are "guaranteed for life against breakage". Lloyd's Test Certification is available for individual CQR™ anchors by arrangement.
|
|
|
High quality finish, our stainless steel Trefoil anchors are made of investment cast steel and are hand-crafted; perfect aesthetic and dimensional result.
|
|

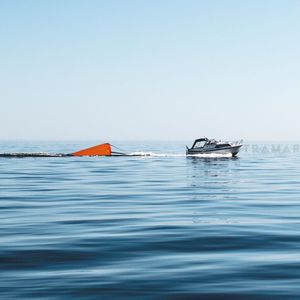

Parachute Anchor Coastal 9.
A Para Anchor is designed to provide sufficient power to hold the bow of a vessel head to wind in the worst storm conditions.
It should be deployed from the bow of the vessel and greatly reduces the risk of broaching, capsizing or rolling, keeping the boat more comfortable and stable throughout the duration of the heavy weather. Most importantly it allows the vessel to take the storm head on, rather than running with it, which reduces the time spent in discomfort.
A must have for any cruising yachtsman or long distance sailor.
|
|
Especially conceived for the moorings with weak ray of swing. Immediate fixing
. Exceptional behavior on tangential and oblique traction
. General-purpose on all the funds
. Easy handling on board
FOB the ROCK'N'ROLL is made out of galvanized steel or stainless polish-mirror.
|
|
For more than 20 years of many yachtmen have been made safe by the anchors FOB for their effectiveness, their handiness and their reliability.
Anchor FOB THP:
. a new concept
. a new geometry
The perfect homogeneity of the behavior of FOB the THP on all types of funds is confirmed by many tests at sea.
|
|
Approved anchor with high capacity of behavior by Véritas Bureau. Effectiveness: all sea-beds
. Safety: E36.2 steel or 316L
. Handiness
FOB the HP is made out of galvanized steel or stainless polish-mirror.
|
|
|
Ideal for sand and mud bottoms, provides safe and secure anchoring for heavier craft. A hinged shank provides operators with consistent setting and holding in even the worst conditions. Ideal for a primary or storm anchor. Available in galvanised cast steel or polished stainless steel finish.
|
|
Today it is proven that the high behavior of the anchors of navy to strong penetration raises more geometry than of the weight.
Three times lighter than a traditional anchor, the anchor FOB LIGHT facilitate the operations of traditional mooring or empennelage.
FOB the LIGHT is made out of alloy of aluminum, magnesium and titanium, and is treated thermically to have the mechanical resistance of steel.
Ideal for:
. 2nd mooring, associated with a leaded rope
. A frequent use and without tiredness for all the family
|
|
|
Our Shark™ anchors are exceptionally effective in a variety of sea beds. Work very well with Anchorlift bow rollers, which give you a self launching system. Release the anchor without the need to leave the controls. Remains stable in various tidal conditions. Available in hot dipped galvanized and in high polished stainless steel (ASI316). Sizes from 6 kg / 13 lbs to 50 kgs / 110 lbs. According to our testing, the Shark™ anchors holds up to 35% more weight than our competitor's counterpart, the Bruce anchor.
|
|
Benefiting from years of Fortress Anchor Research and Development, Guardian offers excellent quality, performance and economy. Guardian is made from the same high tensile, corrosion resistant aluminum magnesium alloy and manufacturing precision as Fortress.
The use of slightly smaller extrusion profiles and the elimination of some of Fortress' extra features, such as anodizing, adjustable fluke angles, and several machining steps has resulted in a very affordable alternative to those heavy, rust-prone steel anchors.
|
|
In test after test, from coast to coast and from around the world, no anchor in history has been called "The World's Best Anchor" by more boaters and respected marine experts than Fortress...and for good reason.
Years of research and development, high-tech materials and manufacturing and thousands of real world tests are your assurance of performance, quality, and value. Fortress weighs only half as much as heavier steel anchors and yet outperforms them all.
Why? Because the Fortress design does not depend upon weight to provide world class performance. All this adds up to your best value in anchoring safety and convenience.
|
|
Storm Sea Anchor
U.S. Coast Guard approved sea anchor. 36"x72"
Manufactured from vinyl covered heavy nylon. Unmatched strength and durability - will not rot or mildew. Stainless steel or galvanized fittings, nylon webbing. Finest available
|
|
