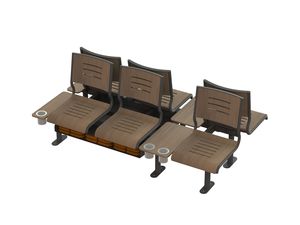

VARIUS is also available as bench seat with width according to customer's requirements. Optionally there is a large wooden box (or storage mounted with stainless steel hinges under the bench. Standard height of the box is 150 mm, others upon lequest. As another option the bench can be supplied with fold-up armrests like VARIUS.
|
|
Pilot seat for outdoor use
Imitation leather, customer-supplied materials
- Supporting structure in marine wood
- Pivoted hinge in steel AISI 316
|
|
Pontoon Boat Seat Furniture Rear Group Total across Stern/Back is 89 inches, and coming up port side is 72 inches.
This Rear L-Group includes 6" arm with cup holder, 50" lounge, corner, across stern/back, 39" lounge up portside.
|
|
Folding directors chair
in stainless steel 316 mirror finish
Dimensions: W.56 D.48 H.80 cm.
folded : W.13 D.48 H.80 cm.
fabric Tempotest sand or blue
|
|
Costa Brava chair
Folding chair in massif teak
cm. 56x45x85 h.
crome plated hinge
sitting height 46 cm.
fabric sand or blue.
Available fitting leather socks
|
|
|
Each decking system is customized to ensure seaworthiness first and foremost - our beautiful aesthetics are built into a guaranteed watertight fit. Seams and joints are caulked using our private label epoxy that has been tested and certified in extreme hot and cold environments on the open ocean.
|
|
|
Teak adjustable folding Lounge chair, Back has seven postions, brass hardware. Chair comes only in a raw teak, customer can finish to there preference.
|
|
The newest seat base from Llebroc Industries, the Helmsman Bolt Down Base Stand is available in two models with variable height adjustments.
The LLE-5410 features a 4" mounting post which is adjustable from 18" to 28".
The LLE-5409 also has a 4" post, but adjusts from 23" to 33".
A 12-inch mounting plate bolts directly to the deck ensuring rock solid seat stability in even the roughest seas. This configuration makes it desirable for even the most luxurious boats.
Constructed of 5052-H32 1/4" thick aluminum, the entire unit is sealed against the most severe weather conditions by a black UV protected textured powder coat. The Helmsman fits all existing 4" marine hardware and seat mounts.
|
|
|
|
|
|
|
UPSCALE QUALITY, PREMIUM MATERIALS: Only the best materials are used in the Commander Seat Hardware System! With oversized anodized aluminum tubing, solid stainless steel slide rails, Delrin bearing rods, and CNC Machined or Precision-Cast Aluminum, the hand built Commander system makes a statement of class aboard any large boat or yacht.
ROCK SOLID, WOBBLE FREE
SWIVEL: 360 degree free rotation or positive lock in 45 degree increments - single lever operation with drag adjustment for optimal performance
SLIDE: 6" of fore and aft travel with positive locking at 1" increments. Solid 1" stainless steel slide rails with lubrication system are operated with a single lever for effortless and smooth precision operation
LIFT: Vertical travel of 4" is operated from a single lever in a lift-to-lift motion. A gas spring and lubrication system provide 112 lbs. of lift force
The Yachtsman II is available in 4 different Gas Rise Adjusting Height Systems.
For adjusting height availability please see options below.
Can be used with the Atlantis Helm Chair
|
|
This 4" diameter Shock Absorbing Pedestal provides the ultimate in boating comfort and safety. Manufactured with high grade marine aluminum, the pedestal provides the ultimate in safety, comfort and strength. The shock absorbing suspension allows passengers to remain seated when travelling on rough water, avoiding the need to stand up to feel secure.
Seaspension Pedestals are designed to retrofit into most boats with conventional rigid posts, and feature internal progressively rated springs that self-adjust to the passenger's weight. The Seaspesion Pedestal is available in 16", 19", 22" or 25" heights.
|
|
model 6691
manual seat pedestal bases
Pedestal bases for manual seats are in marine grade 316L stainless steal, provide full 360° rotation and include gas-lift height adjustment with manual locking. On automatic seats all cables pass through the pedestal to the controls on the armrests.
|
|
|
Seat pedestal in light alloy, 360° rotary, adjustable in height with horizontal sliders .
|
|
- Stainless Steel Pedestal
- The voltage is 24 V
- Stroke is 150 mm
- Caution! The seat mounted on the pedestal can not rotate, but an additional rotation unit is available
|
|
The HYDROMAR HD CYLINDER is a hydraulic cylinder. The cylinder is 200 mm in height adjustable. The minimum height of the cylinder is 365 mm
A complete pedestal consist of two parts, the cylinder and a stainless steel fixed part, which is available in the height 50, 100, 150, 200, 250, 300 mm
The lever is used to pump up and lower down the pedestal as well to engage the brake for the rotation
The fixed stainless steel part is so constructed that fitting the pedestal on the Multi-Rail is very easy
Also available in complete stainless steel version
|
|
- This pedestal is completely made of stainless steel 316
- Minimum height is 395 mm
- The height adjustment is 200 mm
- The lever is used to pump up and lower down as well as to block the pedestal
|
|
Z80-3000 Series
Satin anodized aluminum seat support and tapered base (100mm/76mm). Seat support feature Delrin bushings for smooth 360 degrees rotation and 6" fore/aft slide. Stainless steel lever or Power-matic, gas-assist seat height adjustments for effortless control.
|
|
teaky beach
Fully built-in sun lounger for the stern platform, the fore sundeck or the flybridge, powered by remote control electric actuators. A mere 75 mm deep when laying flush with any walkway, this lounger is constructed in polished AISI 316 stainless steel and may be finished by the shipyard in either teak or fibreglass to blend in perfectly wherever it is installed. Powered by electric actuators and supplied with a remote control Teaky Beach is available as a simple backrest version with one mobile and one fixed section or as a full lounger with one fixed and three mobile sections in two different widths. Each version is supplied with tactile anti-crush edge seals, remote control and digital control panel. The closed-cell polyurethane foam mattress may be upholstered with either marine fabric or leatherette at customer's discretion.
|
|
Ultraflache ground bus from VA-steel, inclusive. Central plate anti-slip.
Available in the lengths 1010 mm, 1170 mm, 1490 mm, 2000 mm, 2500 mm, 3000 mm and 3500 mm.
Both installation version and structure version with frameworks possible!
Computation G-test: 10 G.
Available also with blocking system by means of Zentralverriegelung (push of a button).
|
|
