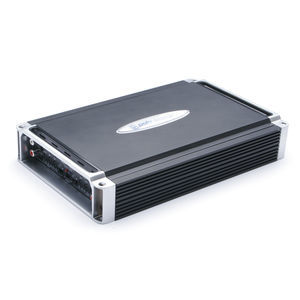

The ME-400 Four Channel, marine grade amplifier provides 400 watts of crisp, clean audio power. The amplifier can be easily configured to enhance your listening pleasure. Both crossover circuits and high pass and low pass filters are fully adjustable so you can power your subwoofer as well as your standard speakers. Gold plated connections resist corrosion. Rubber mounting feet isolate vibration. Efficient heat sink design ensures uninterrupted operation. Built from the ground up to withstand the rigors of the marine environment, the ME-400 will be an outstanding addition to your vessel's audio system. circuits and high pass and low pass filters are fully adjustable so you can power your subwoofer as well as your standard speakers. Gold plated connections resist corrosion. Rubber mounting feet isolate vibration. Efficient heat sink design ensures uninterrupted operation. Built from the ground up to withstand the rigors of the marine environment, the ME-400 will be an outstanding addition to your vessel's audio system.
|
|
Add more power to your marine speakers by connecting a FUSION Marine Amplifier to your audio system, or install with a subwoofer to increase the bass level of your music.
Generally, a 4 Channel Marine Amplifier can be used to power two pairs of Marine Speakers and a Marine Subwoofer.
|
|
Add more power to your marine speakers by connecting a FUSION Marine Amplifier to your audio system, or install with a subwoofer to increase the bass level of your music.
Marine Amplifiers feature anti-corrosion treated PCB’s and stainless steel end panels to maximize corrosion protection.
Generally, a 2 Channel Marine Amplifier is used to power a Marine Subwoofer, increasing the level of your audio system.
|
|
Marine Zone Amplifier
FUSION’s Marine Zone Amplifier is designed to support the multi-zone technology of the Marine Stereo Unit. The Zone Amplifier is small, enabling discrete installation and when combined with the Marine Stereo Unit provides the platform for a True multi-zone audio system.
|
|
Description: Class A/B Six-Channel System Amplifier
Patented Technology: Absolute Symmetry™ Class A/B Circuit (U.S. Patent #6,294,959)
Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputs
On-board Crossover: State-variable, 12dB / octave Butterworth with continuously variable cutoff frequency selection from 50 - 200 Hz. Configurable as Low-Pass or High-Pass
Bass EQ (Channels 5&6 only): +6 dB fixed frequency, fixed 'Q' (defeatable) with port for optional remote bass control (RBC-1)
|
|
Description: Class D Monoblock Subwoofer Amplifier
Patented Technology: High-Damping Class D Circuit with discrete control circuitry (U.S. Patent #6,441,685)
Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputs
On-board Crossover: Fully-variable (40 - 200 Hz), selectable slope Low-Pass (12 or 24 dB / octave)
Preamp Output: Pass-through type
|
|
Description: Class A/B Two-Channel Full-Range Amplifier
Patented Technology: Absolute Symmetry™ Class A/B Circuit (U.S. Patent #6,294,959)
Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputs
On-board Crossover: State-variable, 12dB / octave Butterworth with continuously variable cutoff frequency selection from 50 - 200 Hz. Configurable as Low-Pass or High-Pass
Preamp Output: Pass-through type
|
|
Description: Class A/B Four-Channel System Amplifier
Patented Technology: Absolute Symmetry™ Class A/B Circuit (U.S. Patent #6,294,959)
Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputs
On-board Crossover: State-variable, 12dB / octave Butterworth with continuously variable cutoff frequency selection from 50 - 200 Hz. Configurable as Low-Pass or High-Pass
Preamp Output: Pass-through type
|
|
Digital, round, low profile antenna for receiving the signals DTT (DVB-T), suitable also for the analogical omni directional reception. It can even
be installed at the top of the mast with a bracket or on the deck with thread 1/14%u201D.It is protected against atmospheric conditions and has a filter
to remove interference (low noise).
It offers excellent reception for ground directive digital TV channels, obtaining analogical and digital signals.
Innovative antenna TV ground low profile and minimum dimensions, omni directional with "low noise" reception, equipped with a filter
|
|
|
|
|
|
|
THE HIGH PERFORMANCE DIGITAL (DVBT) AND ANALOG DIRECTIONAL TV ANTENNA FULLY ADJUSTABLE BY REMOTE CONTROL.
Nowadays, digital terrestrial television has been become the new standard in many countries. The digital terrestrial standard DVBT allows to receive by a decoder(not supplied), with the same high definition as on the digital satellite TV, many of free on air channels and someone%u2019s on the pay per view base, thanks to a rechargeable card. Polaris is able to receive both vertical and horizontal polarized TV signals thanks to the efficacy of its directive antenna element.
The 60° (max gain) directional reception angle, avoid all the interferences coming from the reflected signals, for example sailboat masts, cranes, buildings etc. in the area. The electric orientation of the antenna through its remote control allow to perform 6 dB gain (about 3 times more gain than an omnidirectional antenna) and also to still have 0 dB gain on a 220° angle (same typical gain of an omnidirectional) without any interference and ensuring a clear and continuous vision of preferred TV programs. It comes with two amplifiers -one internal and one external for enhanced performances, both having low noise factor and the bypass so in a area where the DVBt signal is very strong like a town, frequently an amplified signal cannot be received on digital TV as it is deteriorated from the amplification and to reduce the amplifer gain to solve the problem isnt enough. The exclusive Glomex amplifier bypass allow to switch the antenna signal on TV set without any passage through the amplifier to get crispy digital image on the screen.
|
|
|
|
